| Application Scenarios |
| Can be connected to high-definition network cameras and suitable for monitoring shops, enterprises, homes, education, finance, etc. |
| Product Features |

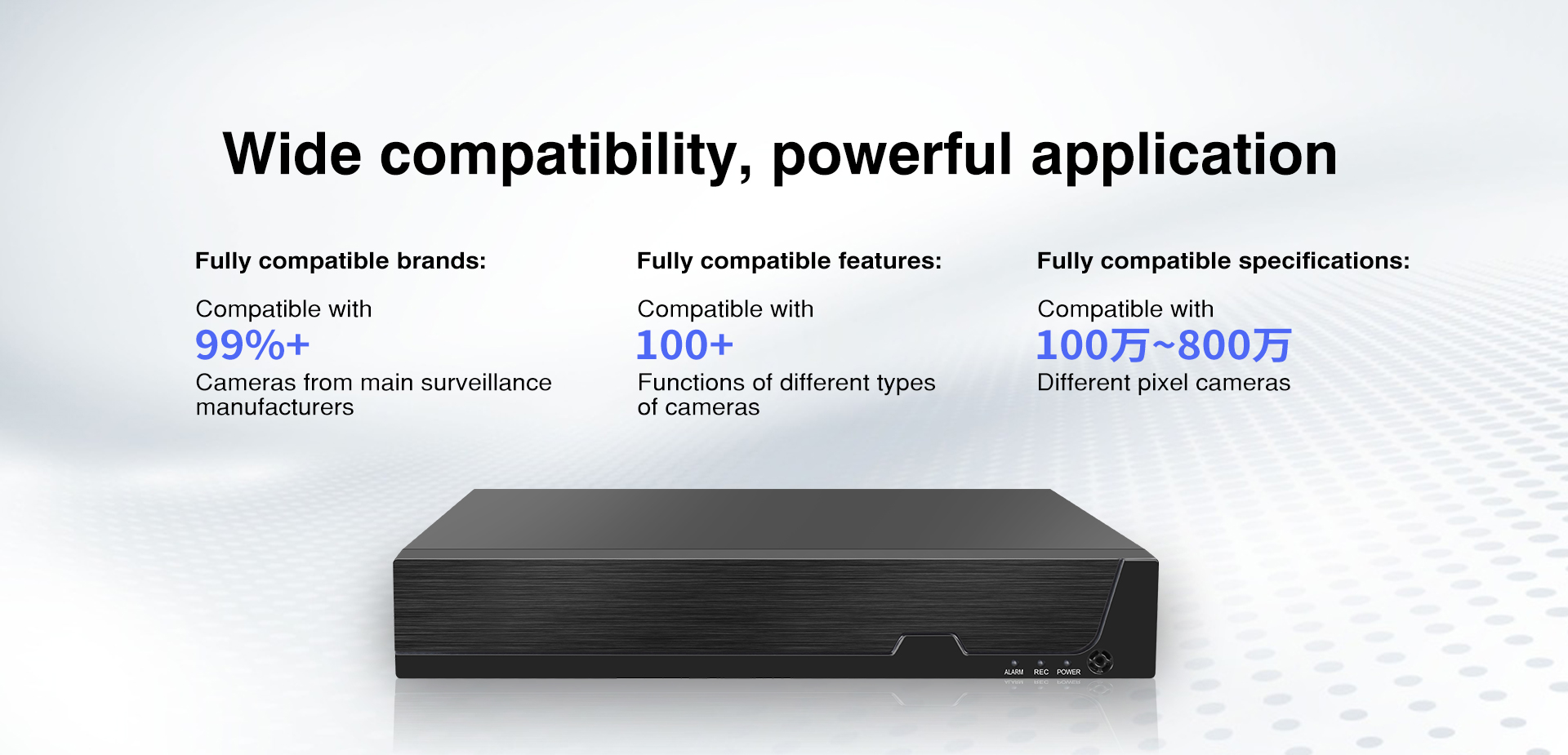

| ✱Can be connected to network cameras from many manufacturers that comply with ONVIF and RTSP standards; |
| ✱Supports cross-network segment search and add network cameras under ONVIF protocol; |
| ✱Supports HDMI output; |
| ✱Supports H.265 video decoding and H.265 and H.264 encoding front-end hybrid adaptive access; |
| ✱Supports adding network cameras with one click; |
| ✱Supports preview, recording and playback of up to 8 MP network cameras; |
| ✱Supports real-time digital channel preview and recording of up to 8 channels of HD network video; |
| ✱Supports up to 8 channels of synchronous playback, with free switching of main and sub streams; |
| ✱Supports 1 SATA interface,10TB HDD; |

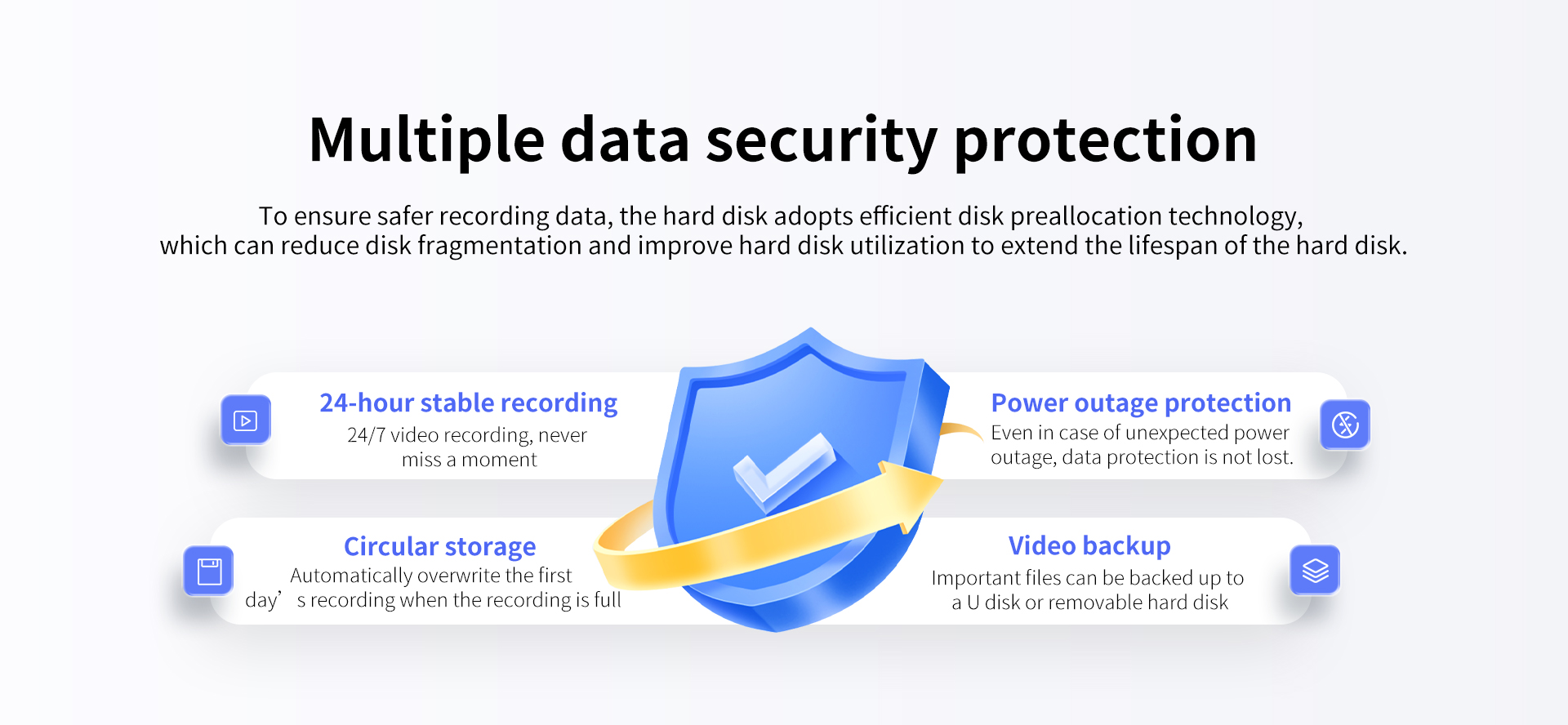

| ✱Supports hard disk S.M.A.R.T technology and hard disk bad sector skipping, greatly reducing data loss caused by hard drive failure; |
| ✱Support plug and play, SMTP, SSL email alarm |
| Specifications |
| Model |
NVR3208L |
NVR3216L |
| Video and Audio Input |
Number of Channels |
8-ch |
16-ch |
| Access Bandwidth |
80M |
80M |
| Video and Audio Output |
VGA |
1-ch,1920×1080,1280×720 optional |
| HDMI |
1-ch,1920×1080,1280×720 optional |
| 1.4a |
| Audio Output |
1-ch,RCA interface(Line out,2Vpp,300ohms) |
| Video and Audio Decoding |
IP Channel Resolution |
Main stream: Max 3840×2160；Sub stream：≤ D1 |
| Video decoding standards |
H.265（Main Profile@L5.0 High-tie）/ |
| H.264 (Up to High Profile@Level5.0) |
| Audio decoding standards |
G.711、G.726 |
| Multi-channel playback |
Supports up to 8-ch synchronized playback |
| Max decoding capability |
4-ch 1080P@25FPS |
| Intelligent Analysis |
Not support |
| Other Functions |
Voice intercom |
Two-way voice intercom function (APP and IPC) |
| Motion detection |
Each screen can set 396 (22×18) detection zones; multi-level sensitivity can be set. |
| Capture function |
Support JPEG capture |
| HDD Management |
SATA interface |
1 SATA 2.0 |

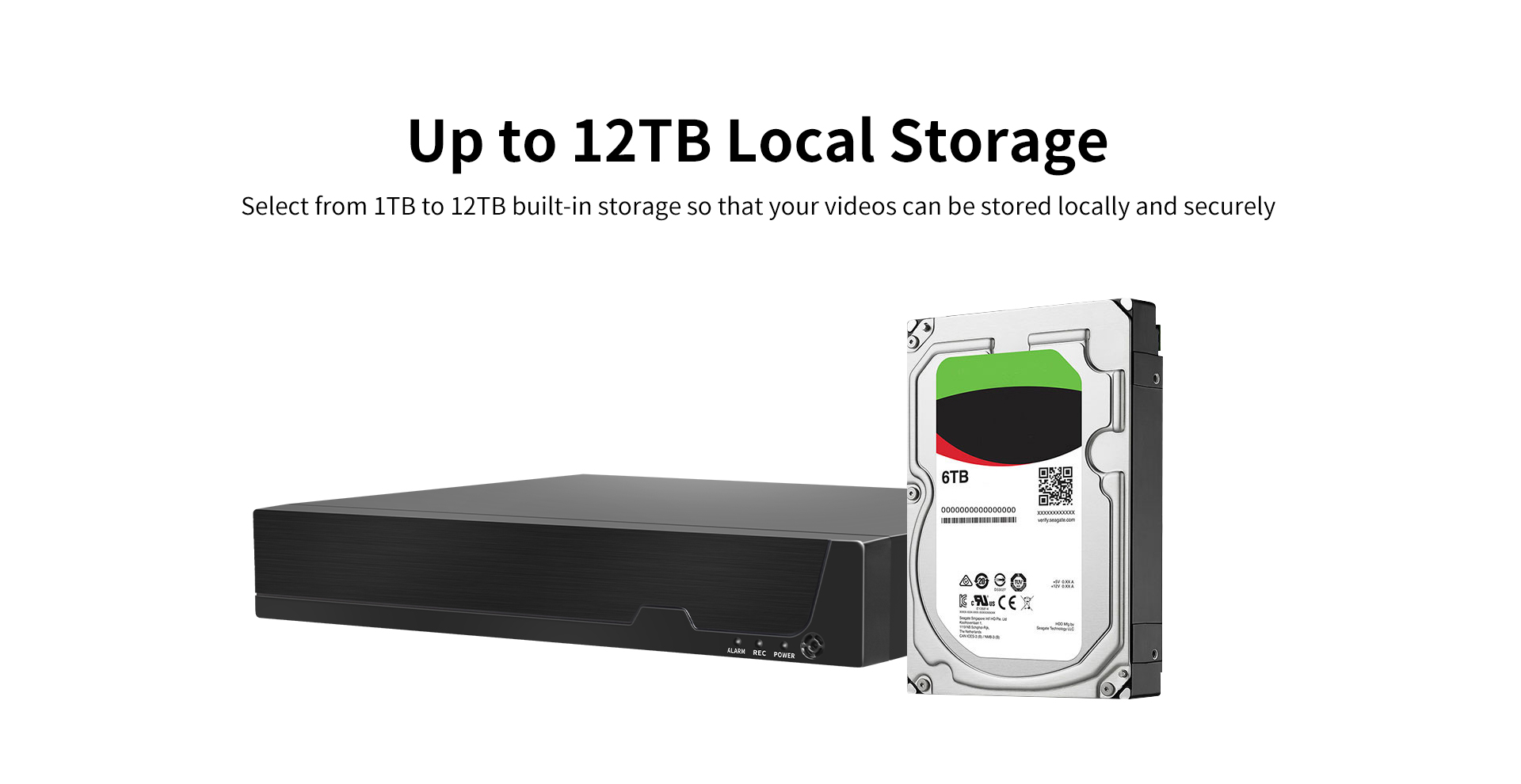

| Single disk capacity |
Max.10TB |
| External Interface |
Ethernet interface |
1 RJ45 10/100M adaptive Ethernet port |
| Alarm input |
Not support |
| Alarm output |
Not support |
| USB interface |
2*USB2.0(rear) |
| General |
Power supply |
DC 12V 2A |
| Working temperature |
-10℃--＋55℃ |
| Working humidity |
10％--90％ |
| Consumption(without HDD) |
≤ 7W |
| Others |

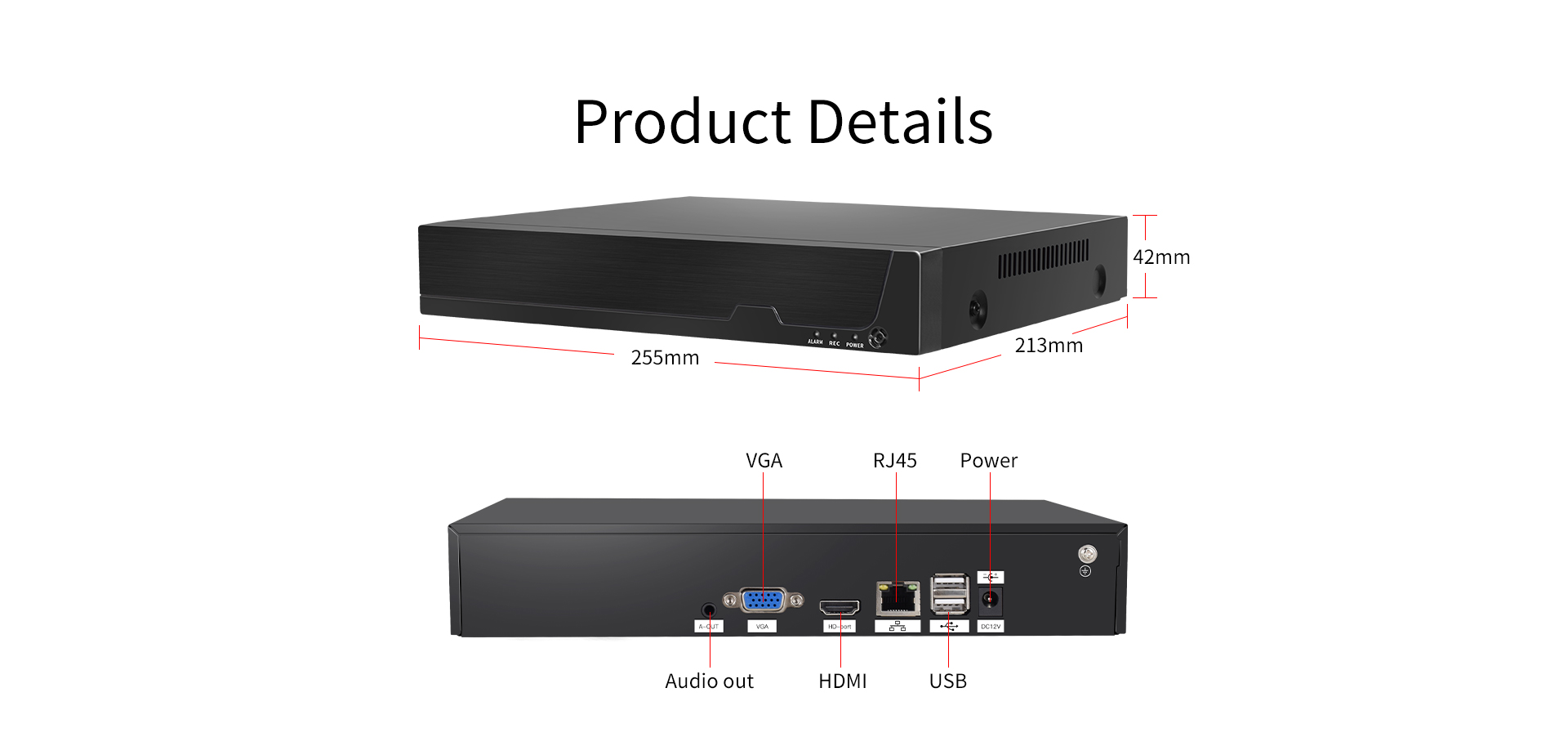

Dimension (W × D × H) |
253*218*43(mm) |
