| Sorts |
Type |
Parameters |

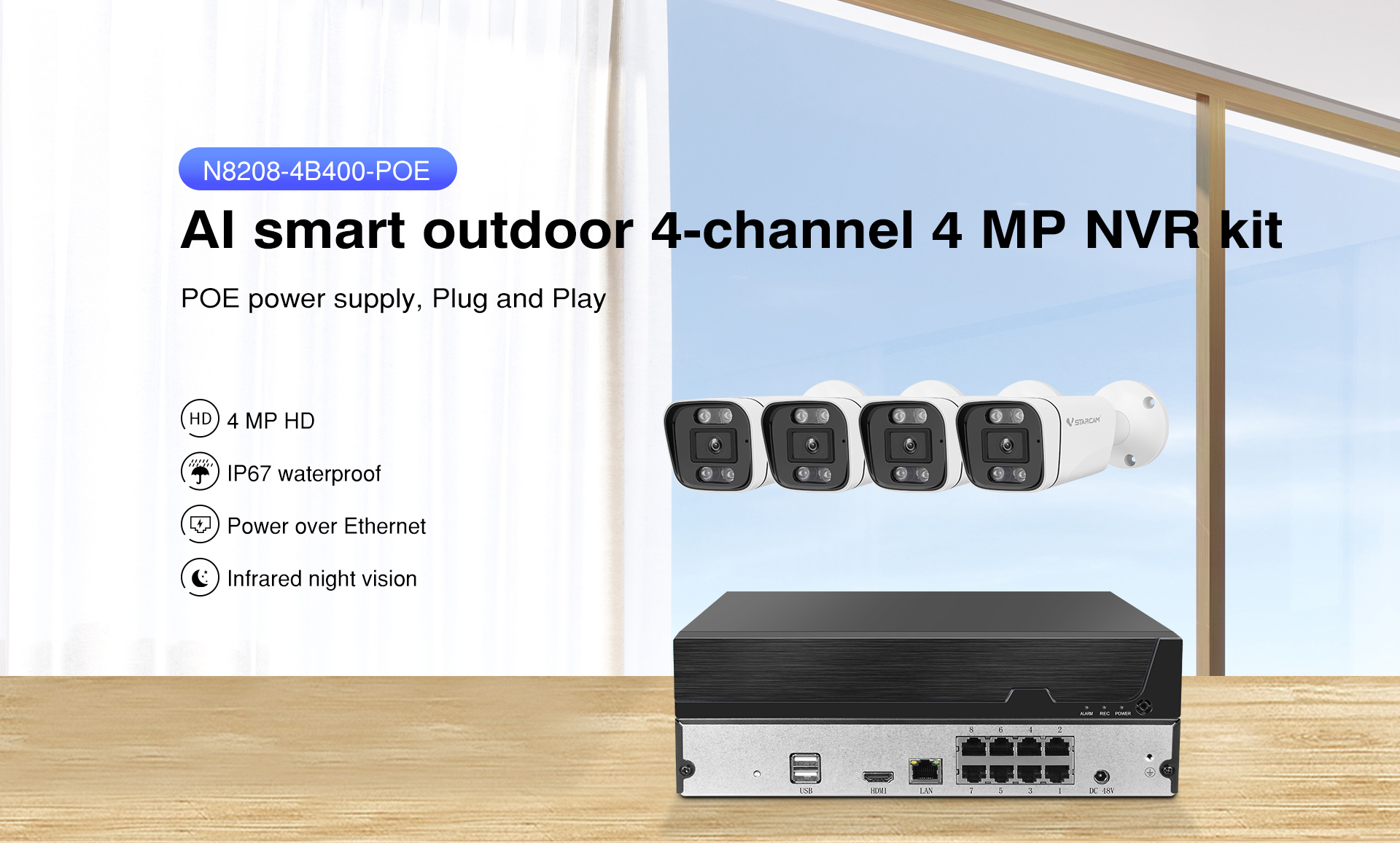

| XKY-NVR3208-P8 |
| System |
Main processor |
Industrial grade embedded microcontroller MC6830 |
| Operating system |
Embedded LINUX operating system |
| System resource |
Simultaneous multi-channel real-time recording, real-time playback, multi-channel multi-person network operation, USB backup |
| Interface |
Operation interface |
16-bit true color graphical menu interface, support mouse operation |
| Screen display |
1/4/6/8 screen |
| Image coding |
H.264+（Main Profile@L5.0 High-tie）/ H.264 (Up to High Profile@Level5.0) |
| Playback quality |
1 channel of 8MP playback（synchronous playback of multi-channel auxiliary code rate);Support 800W/500W/400W/300W/1080P/960P/720P/D1/VGA |
| Video access |
8 channels |
| Audio |
Audio compression |
G.711, G.726 |
| Audio, video and others |
Video recording |
Manual, timing |
| Local playback |
Supports up to 8-channel synchronous playback |
| Video query |
Time search, calendar search, event search, channel search |
| Backup method |
U disk or USB mobile hard disk |

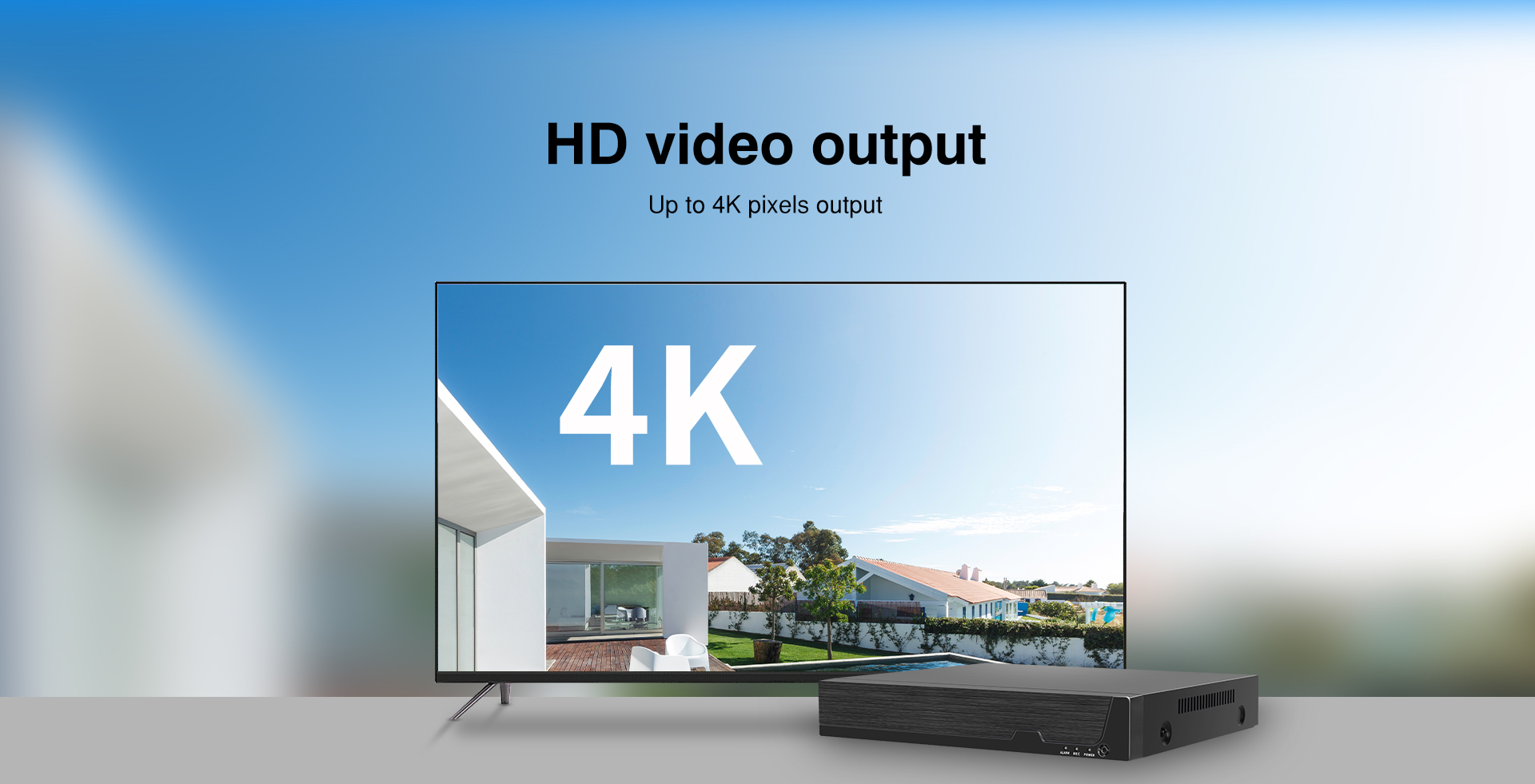

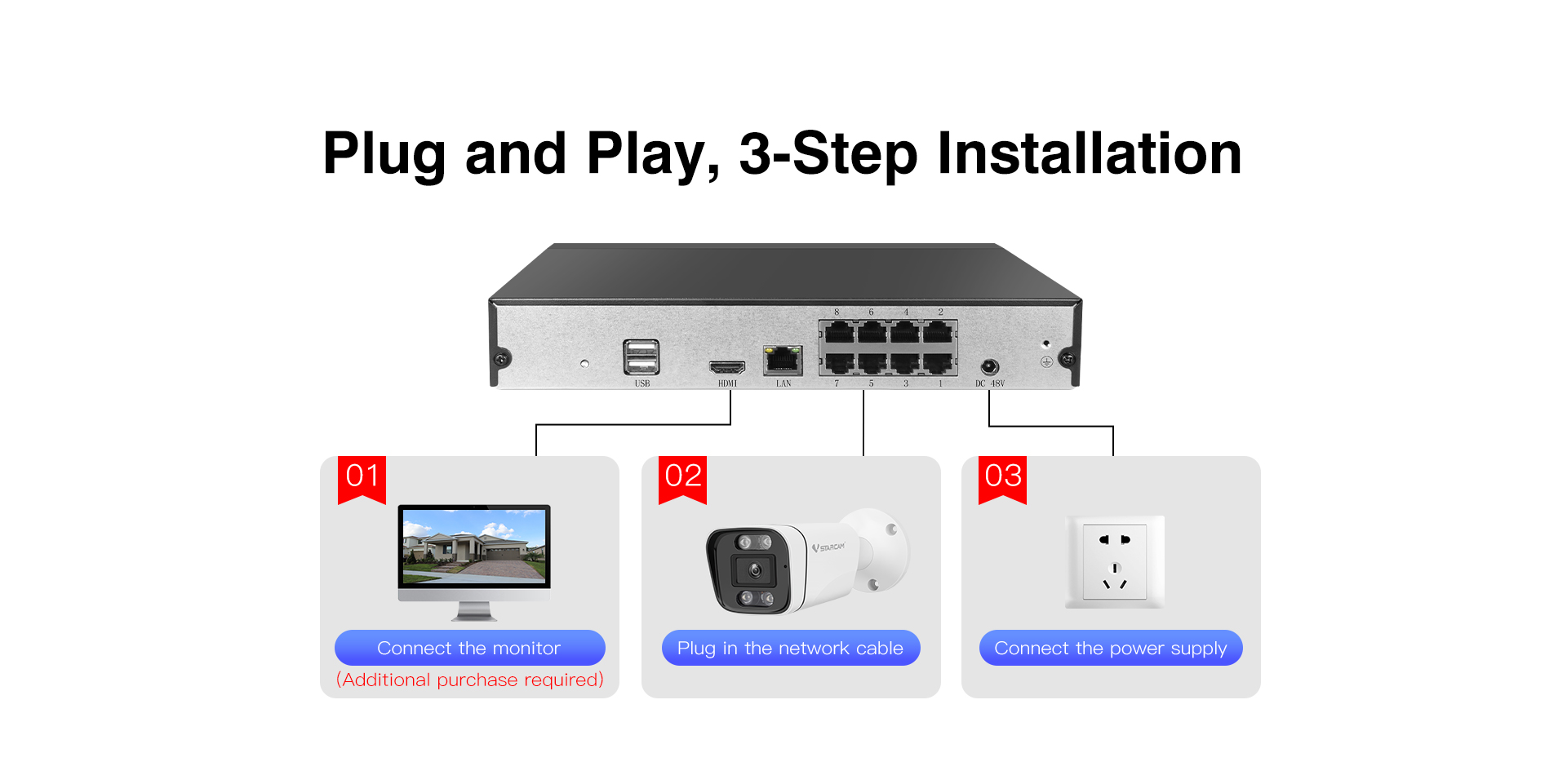

| Video output |
1 HD-OUT, 3840×2160, 1920×1080 |
| Audio output |
No separate audio output interface |
| Network Interface |
1*RJ45 10M/100M adaptive Ethernet port |
| USB interface |
2*USB2.0(Rear) |
| Hard disk interface |
1 SATA 2.0 (support up to 10TB hard disk) |
| Onvif Protocol |
Support |
| Power supply |
DC 48V 2A |
| Weight |
0.73(kg) |
| Working humidity |
10%－90% |
| Operating temperature |
0°C-＋50°C |
| Size |
253*218*43(mm) |
| Camera |
| System |
Operating system |
Embedded Linux |
| Online visitor |
Supports 4 visitors at the same time |
| Collection |
CPU/Image sensor |
1/3 inch CMOS sensor |
| Minimum illumination |
0.5 Lux(Color mode), 0.1 Lux(B&W mode) |
| Lens |
4mm@F2.0/90.7°Diagonal |

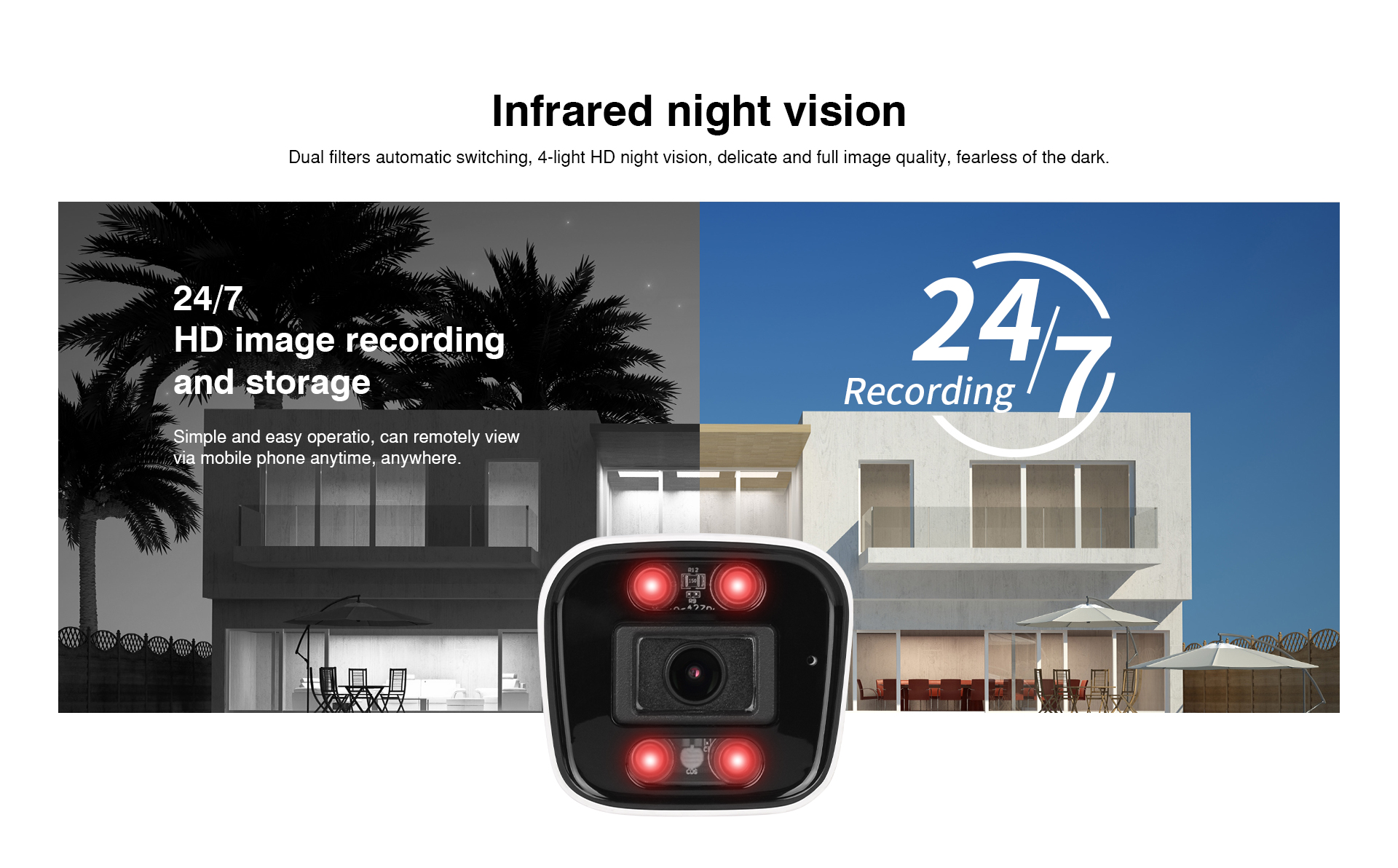

| Night Vision |
IR-CUT with auto-switching,4pcs 850nm IR lights, irradiation distance 5-10M |
| Video |
Compression standard |
H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG |
| Data rate |
Main stream:1440p(2560*1440)@25fps； Substream：360p(640*360)@25fps |
| Bit rate/maximum frame rate |
128～4096kbps/25fps |
| Image adjustment |
Adjustable brightness, contrast, saturation, and chromaticity |

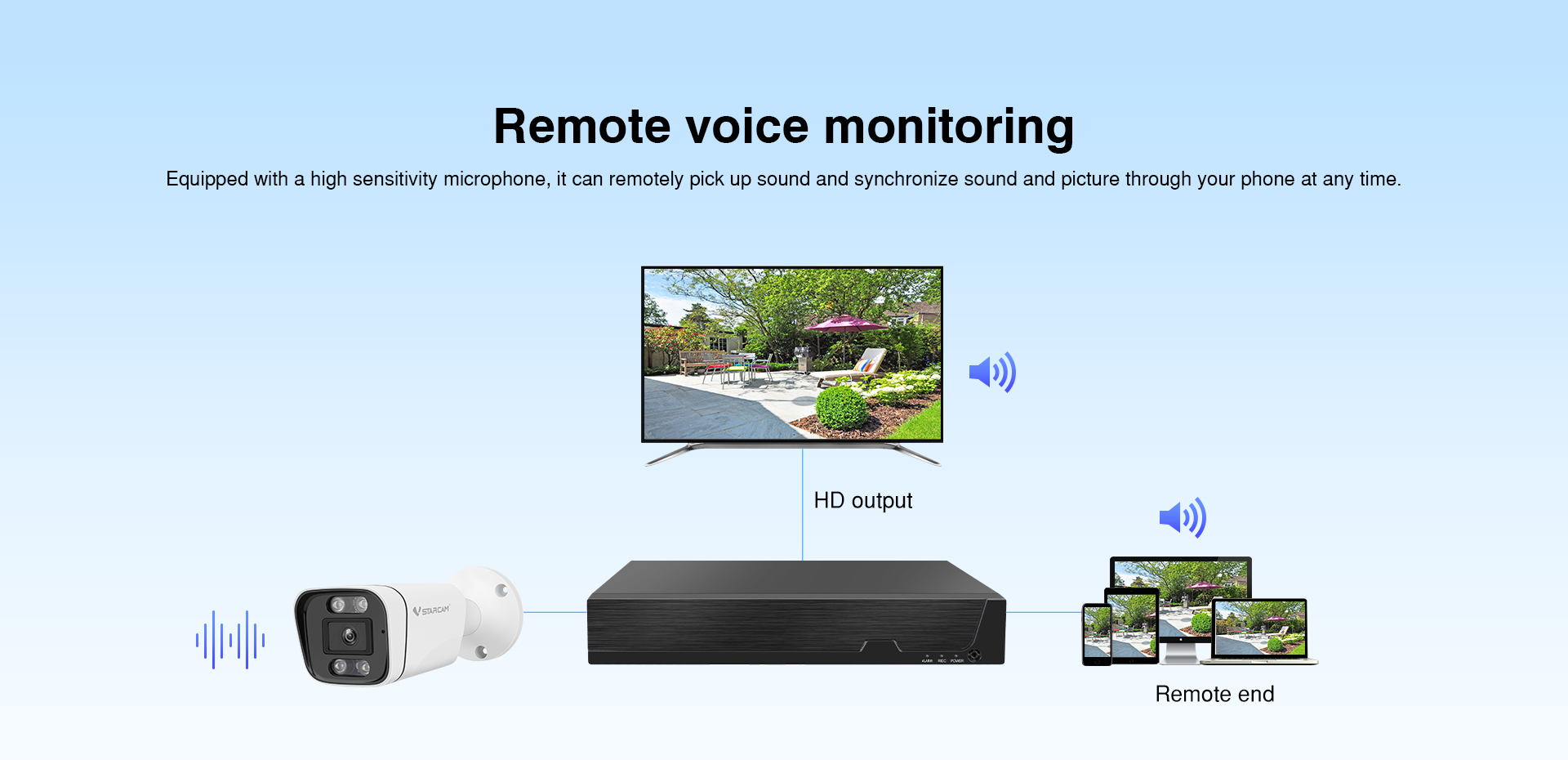

| Audio |
Input |
Built-in - 38dB microphone |
| Sampling frequency/bit width |
8KHz/16bit |
| Compression standard/Bit Rate |
G.711/32kbps |
| Network |
Network interface |
10Mbps/100Mbps adaptive/RJ45 interface |
| Network Protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. |
| Physical indicators |
Rated voltage |

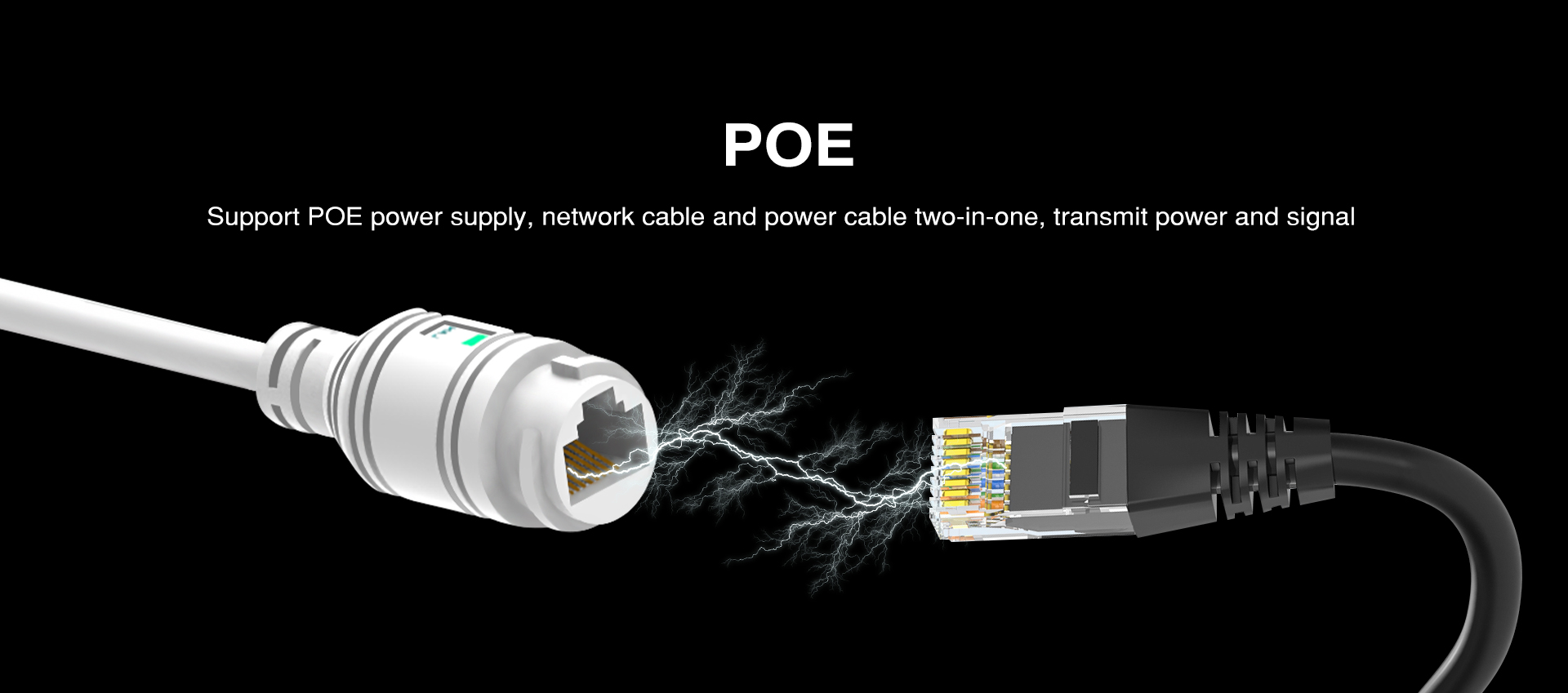

12V/supporting POE (48V) power supply |
| Power consumption |
Power: 4.32W (infrared light on) Maximum power: 5W |
| Operating condition |
Temperature: -10～50℃; Humidity: ＜90% |
| Weight |
N.W.: 335g Note: in kind prevail |
| Package size |
Note: in kind prevail |
