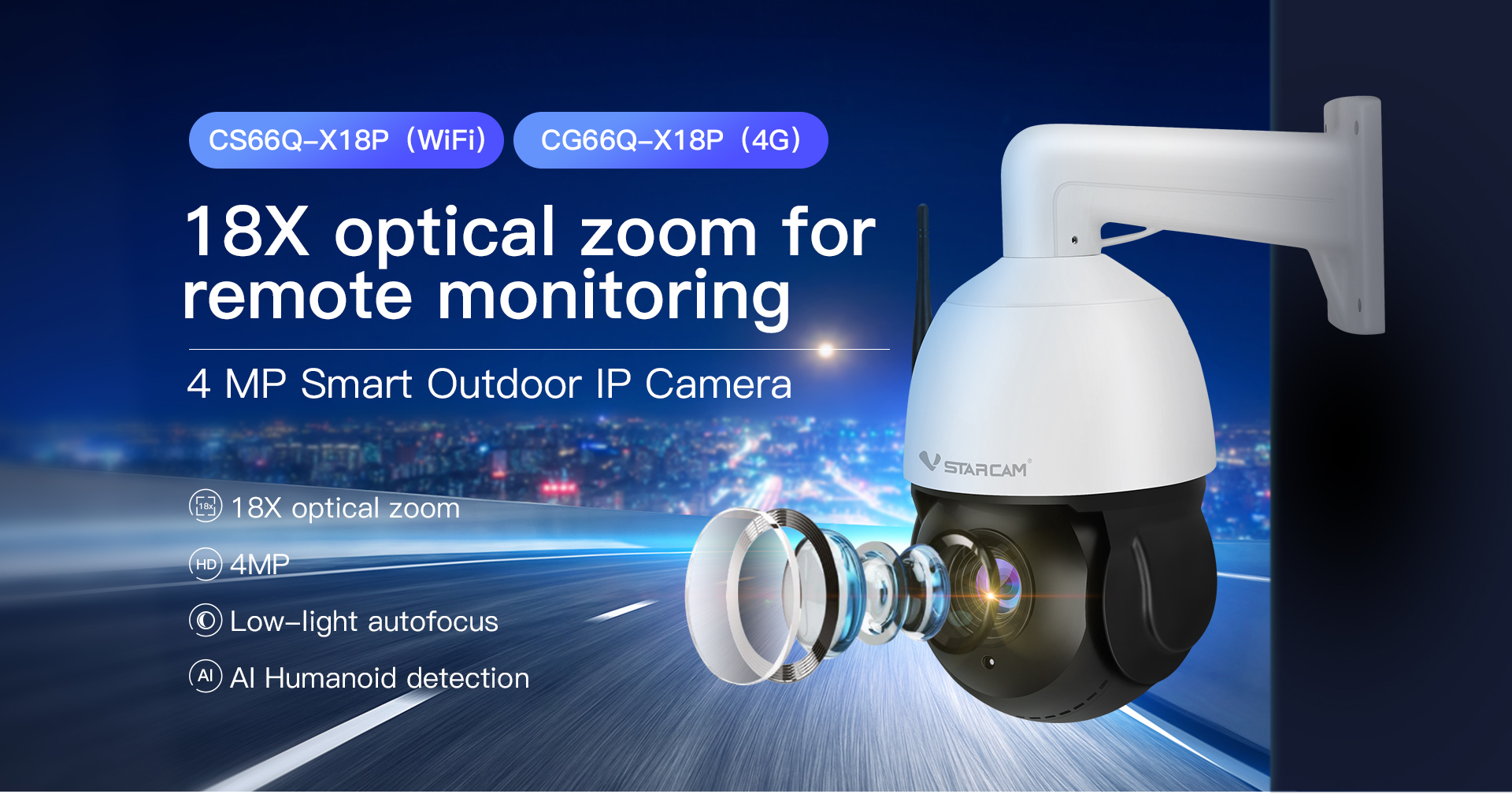

CS66Q-X18P/CG66Q-X18P

CS66Q-X18P

✮4 MP Ultra HD
✮18x optical zoom
✮360 ° rotation, presets cruising
✮6 high-power infrared lights, night vision distance 100 meters
✮ISP image processing technology, preserving true colors
✮Human detection, real time alerts

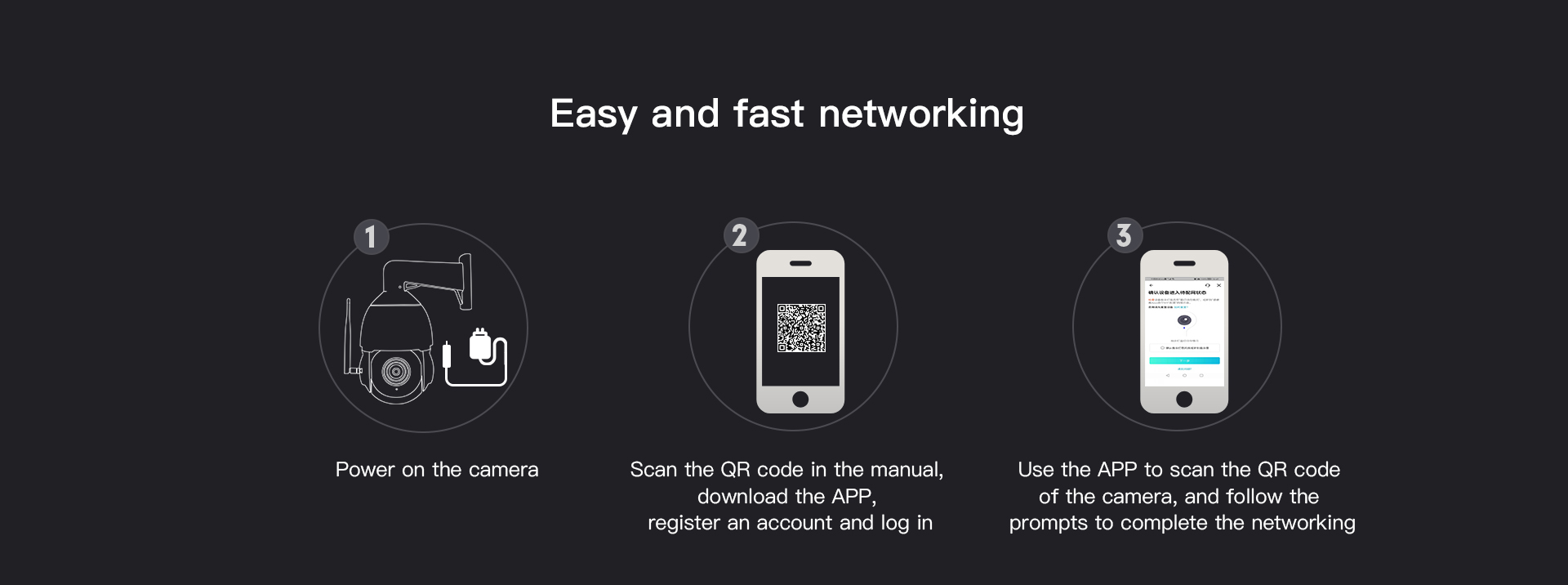

✮Remote access, view the monitoring areas anytime and anywhere
Sorts	Type	Parameters
System	Operating system	Linux
	Online visitor	Supports 4 visitors at the same time
	APP	O-KAM Pro

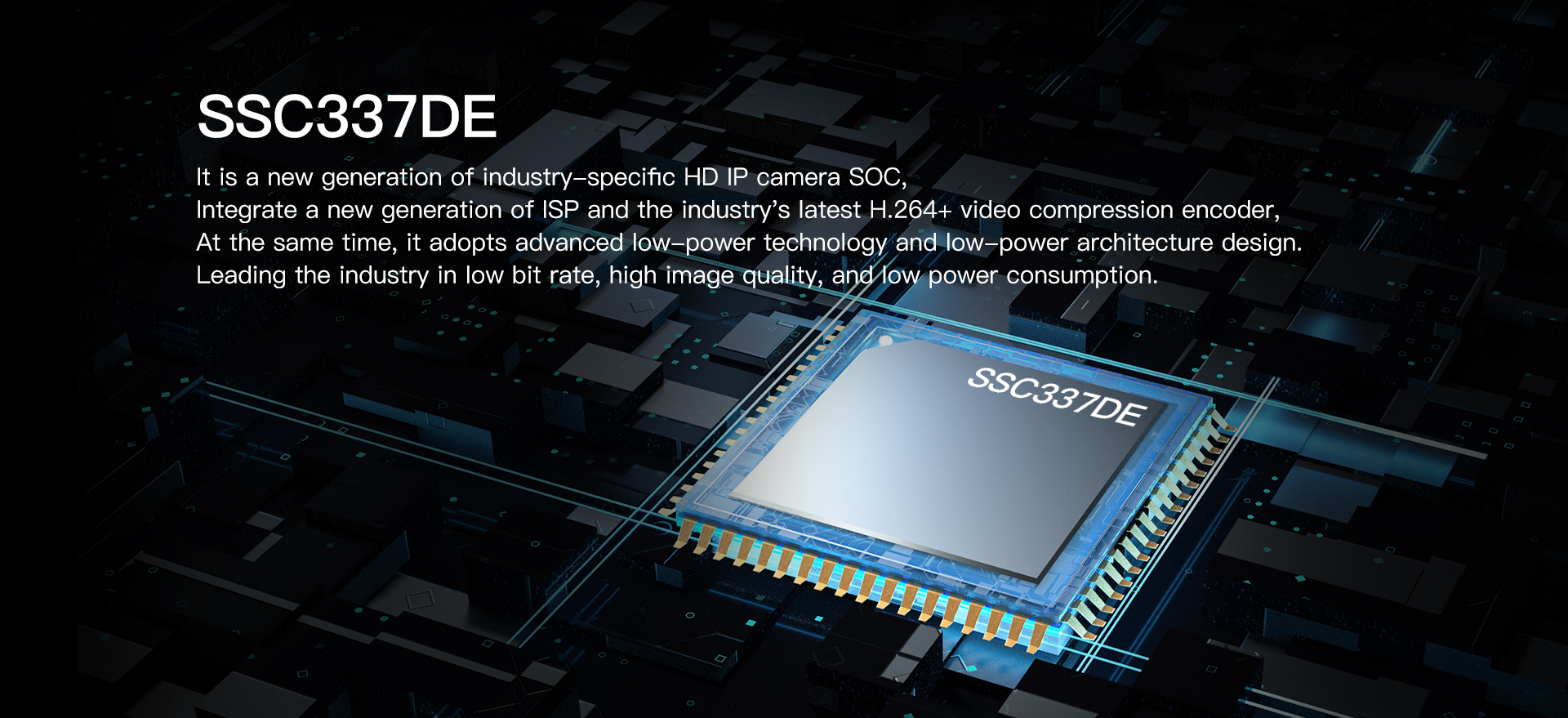

Collection	CPU	Sigmastar
	Memory	1Gbit

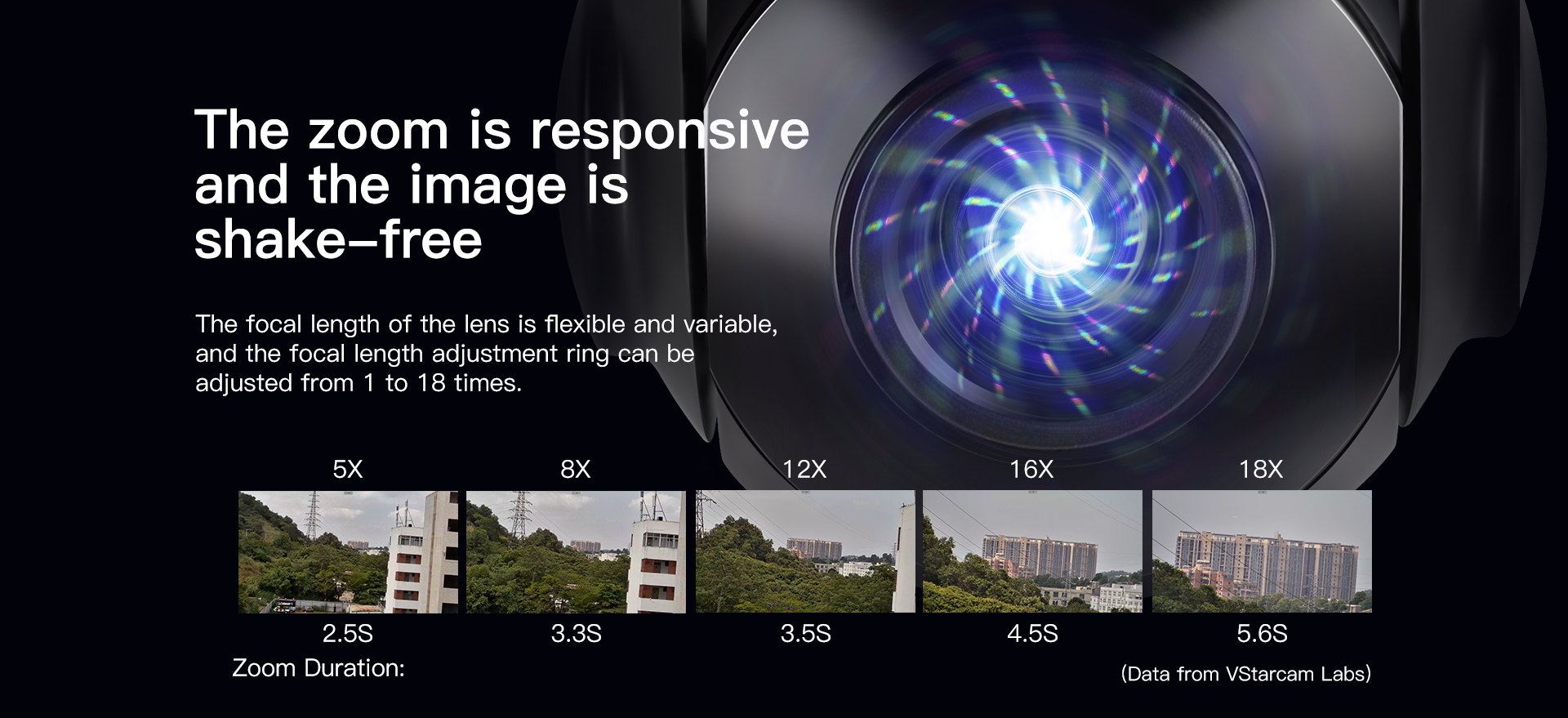

	Lens	18x optical zoom
	Image sensor	1/2.9 CMOS sensor

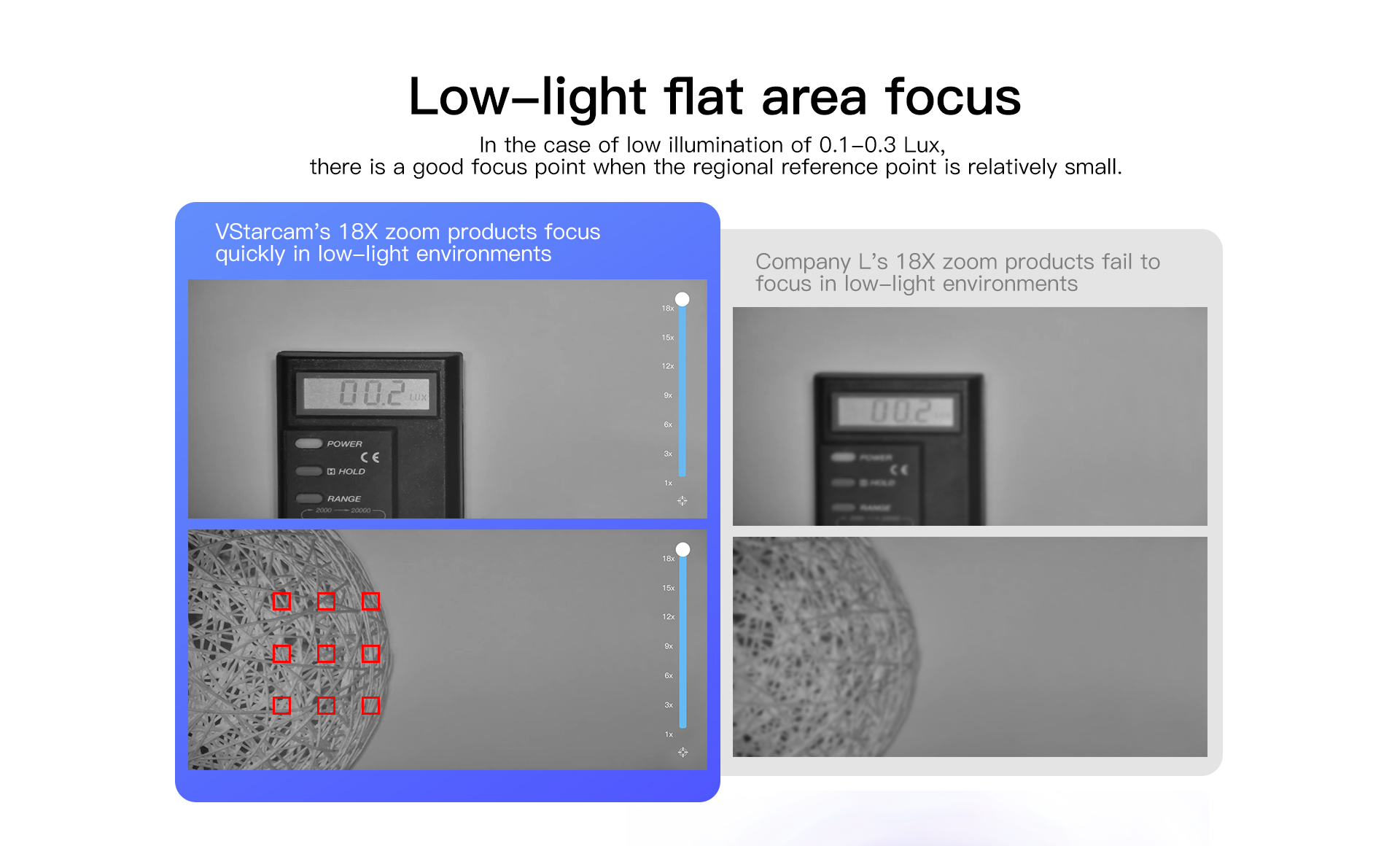

	Min. illumination	0.5Lux (color mode), 0.1Lux (b&w mode)
	Sensor performance	Support automatic white balance, automatic gain control and automatic backlight compensation
	Night Vision	Dual filter automatic switching, 6*850nm infrared lamps, illumination distance 100 meters

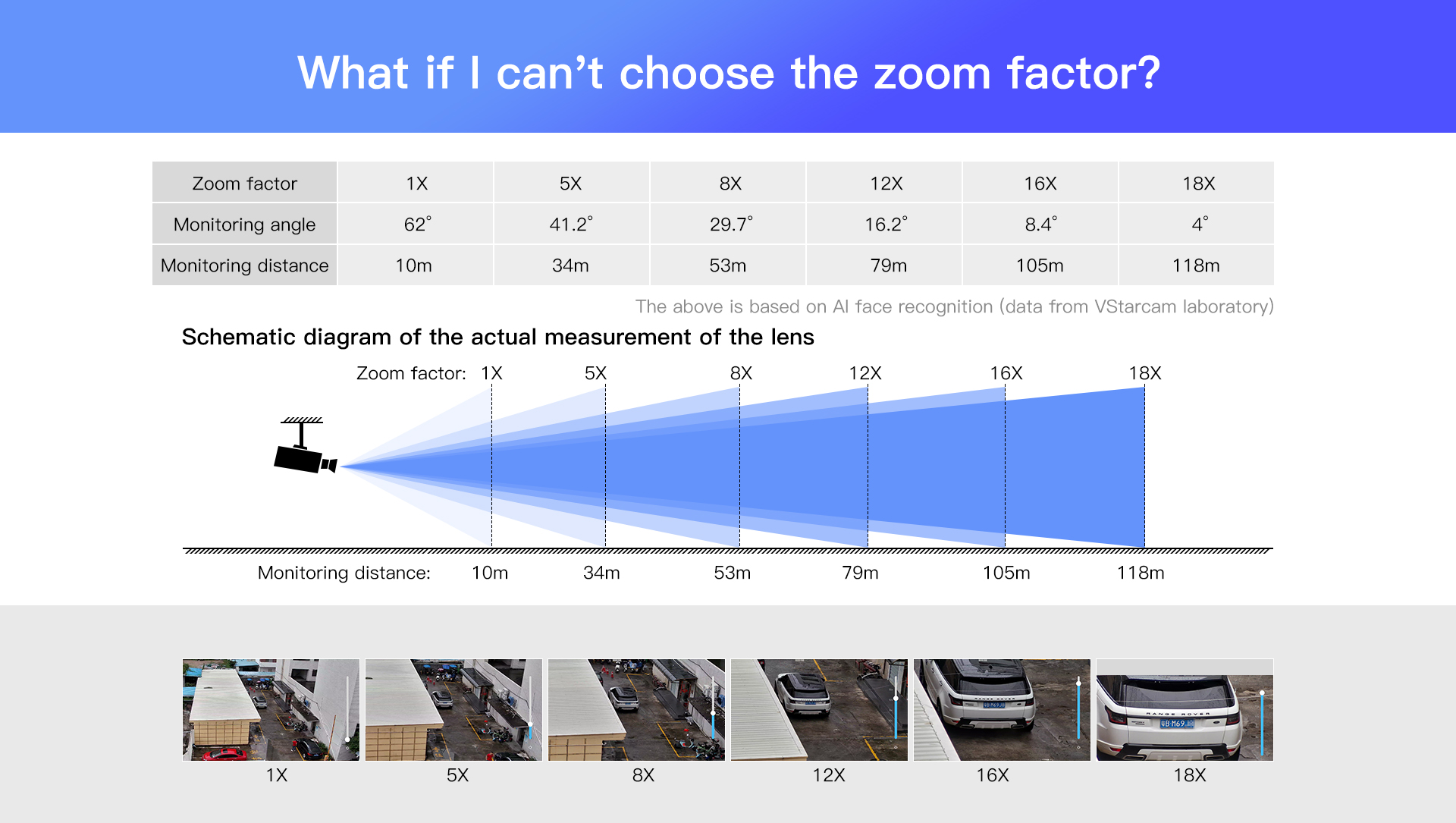

	Viewing angle	5.9mm～94.4mm varifocal lens/Diagonal viewing angle 62°@1X - 4°@18X
Video	Resolution	2688*1520P/25FPS/4 MP
	Compression standard	H.264+ /H.264 /MJPEF/JPEG
	Bit rate	128～4096kbps
	Image adjustment	Brightness, contrast, OSD display

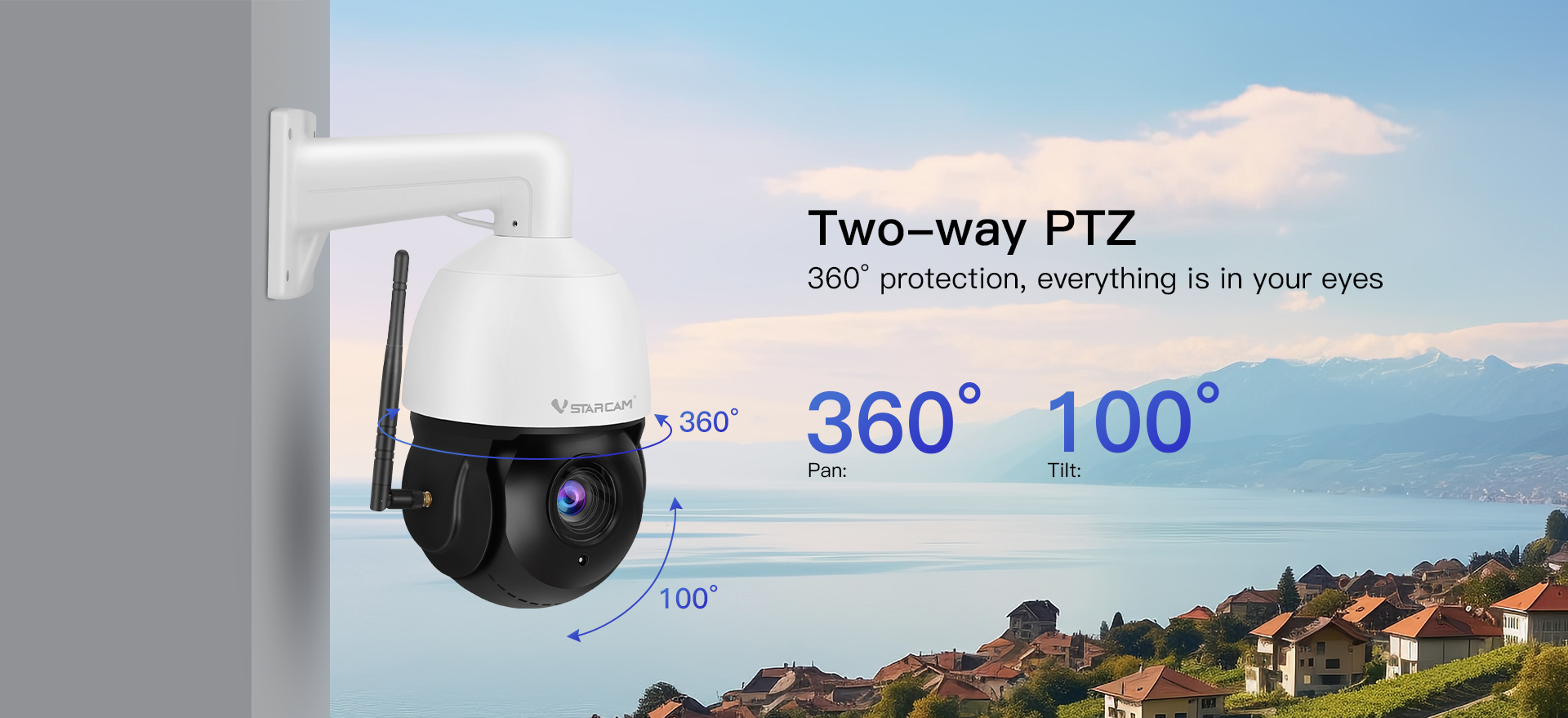

PTZ	Rotation angle	Horizontal 360°/Vertical 95°
	Preset position	Supports 16 presets (mobile app only supports 5)
Audio	Input	Built-in-38dB microphone
	Output	Built-in 8Ω2W speaker
	Sampling frequency/bit width	8KHz/16bit
	Compression standard/Bit Rate	G711A
AI	Humanoid detection	Humanoid detection, filtering invalid video events
	Human tracking	When the camera detects a person, it will automatically zoom in and follow their trajectory.
	Area detection	Free daub, only monitoring the areas concerned by users
	Smart notification sound	Different devices push different sounds, so that you can know exactly which device is triggered
	Intelligent alarm sound	Set different equipment alarm sounds according to different scenarios

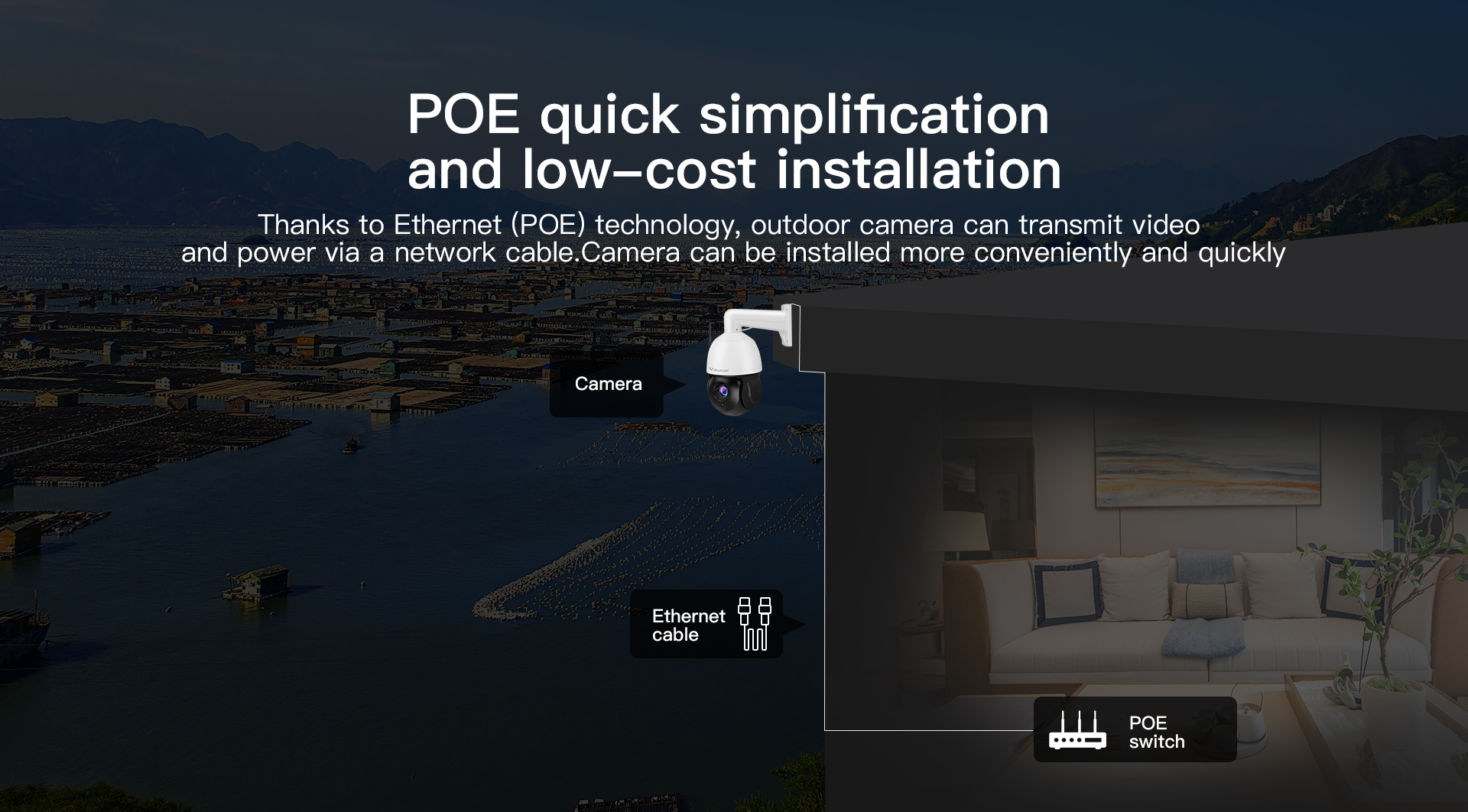

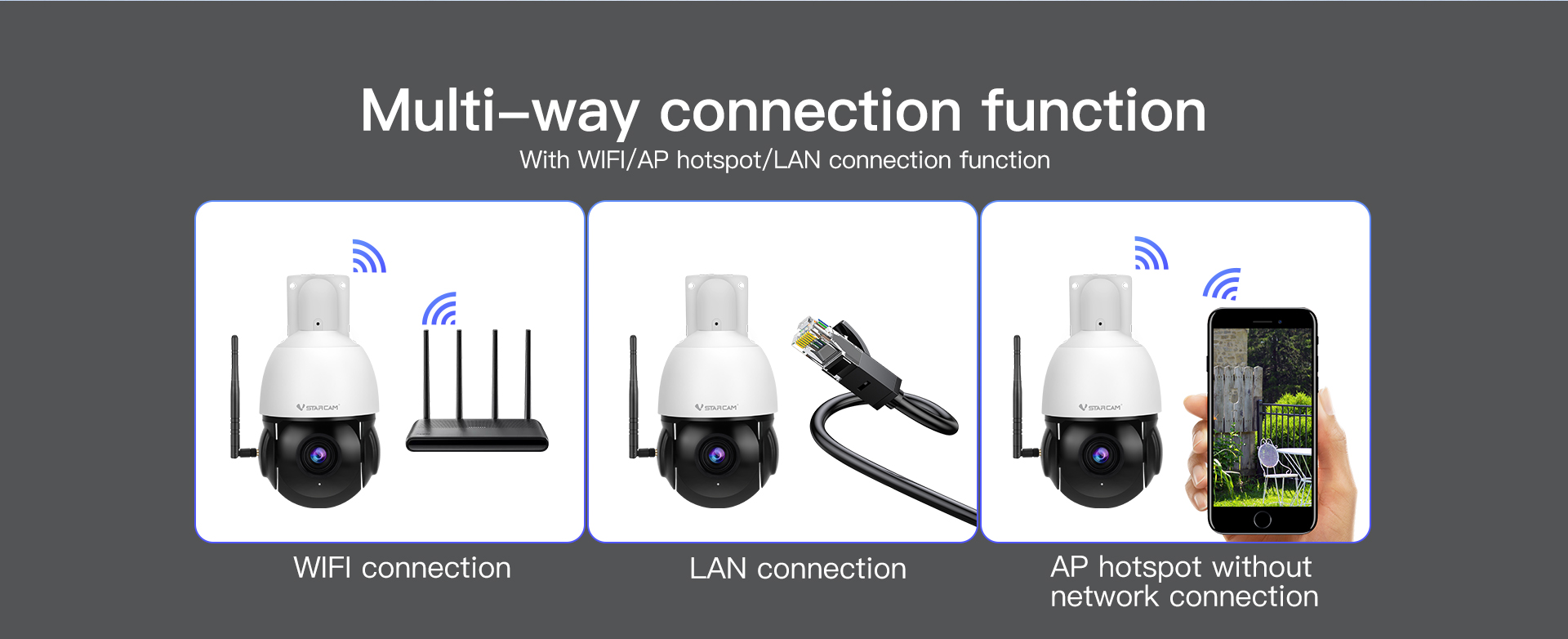

Network	Network interface	10Mbps/100Mbps adaptive/RJ45 interface
	Network protocol	TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P
	Wireless network	IEEE802.11b/g/n/ax
	Wireless frequency	2.4GHz(WIFI6)
	Wireless security encryption	64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
Storage	TF card	Supports T-Flash cards (up to 256GB)
	Cloud storage	Support cloud storage, users can purchase according to their needs.
Alarm	Alarm detection	Motion detection, human detection, human framing, human tracking, siren sound, and area detection
Physical Indicators	Rated voltage	DC12V±5%
	Power consumption	Power: 11.1W (with infrared light on) Maximum power: 16.6W
	Operating condition	Working temperature: -10~55 ℃, working humidity<90%
	Weight	Net weight: 1590g; Gross weight: 2190g;
	Product size	198x136x247mm;
	Packing size	280x230x155mm

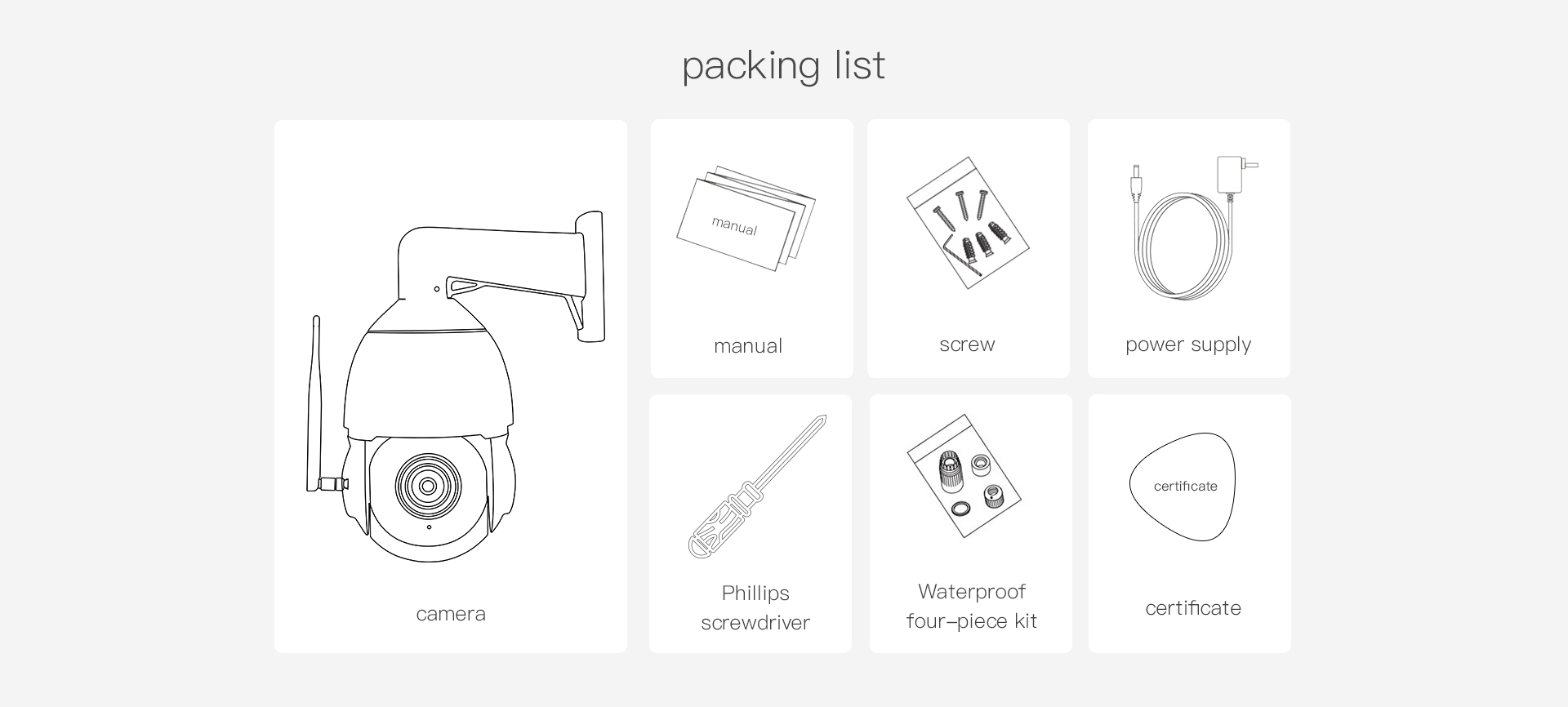

	Packing list	Camera, screw pack, warning sticker, screwdriver, user manual

CG66Q-X18P

Sorts	Type	Parameters
System	Operating system	Embedded Linux
	Online visitor	Supports 4 visitors at the same time
Collection	CPU/Image sensor	1/3 inch CMOS sensor
	Minimum illumination	0.5 Lux(Color mode),  0.1 Lux(B&W mode)
	Lens/Viewing angle	18X Zoom Lens/ Viewing angle 62°@1X～4°@18X
	Night Vision	IR-CUT with auto-switching, 6pcs 850nm IR LED lights, Irradiation distance 15~20 m
Video	Compression standard	H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG
	Data rate	Main stream: 1520P（2688x1520）@25fps
		Substream：360p(640x360)@25fps
	Bit rate/maximum frame rate	128～4096kbps/25fps
	Image adjustment	Brightness, contrast are adjustable
Audio	Input	Built-in－28dB microphone
	Output	Built-in 8Ω2W speaker
	Sampling frequency/bit width	8KHz/16bit
	Compression standard/Bit Rate	G.711/32kbps
Network	Network interface	10Mbps/100Mbps adaptive /RJ45 interface
	Network protocol	TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc.
	4G(Domestic Version)Network	FDD:B1/B3/B5/B8
		TDD:B34/B38/B39/B40/B41
		WCDMA:B1/B5/B8
	4G(Europe Version)Network	FDD：B1/B3/B5/B7/B8/B20
		TDD:B38/B40/B41
		WCDMA：B1/B5/B8
Pan & Tilt	Pan & Tilt	Pan 350°/Tilt  100°
	Preset position	Supports 16 (Mobile phone App supports 5) preset positions
Storage	Storage functions	Support T-Flashcard(max256GB); Cloud storage; NVR;NAS
Alarm	Alarm detection	Supports Motion detection; Humanoid detection; Humanoid tracking; Absences alarm; Delimitation detection
Physical	Rated voltage	DC12V
Indicators	Power consumption	Rated power: 11.1 W(with IR LED lights ON)/  Max Power:16.6W
	Operating condition	Temperature: -10～50℃; Humidity: ＜90%
	Weight	N.W.: 1540g   G.W.:2060g（Note: in kind prevail）
	Size	280x230x155mm (LxWxH)
