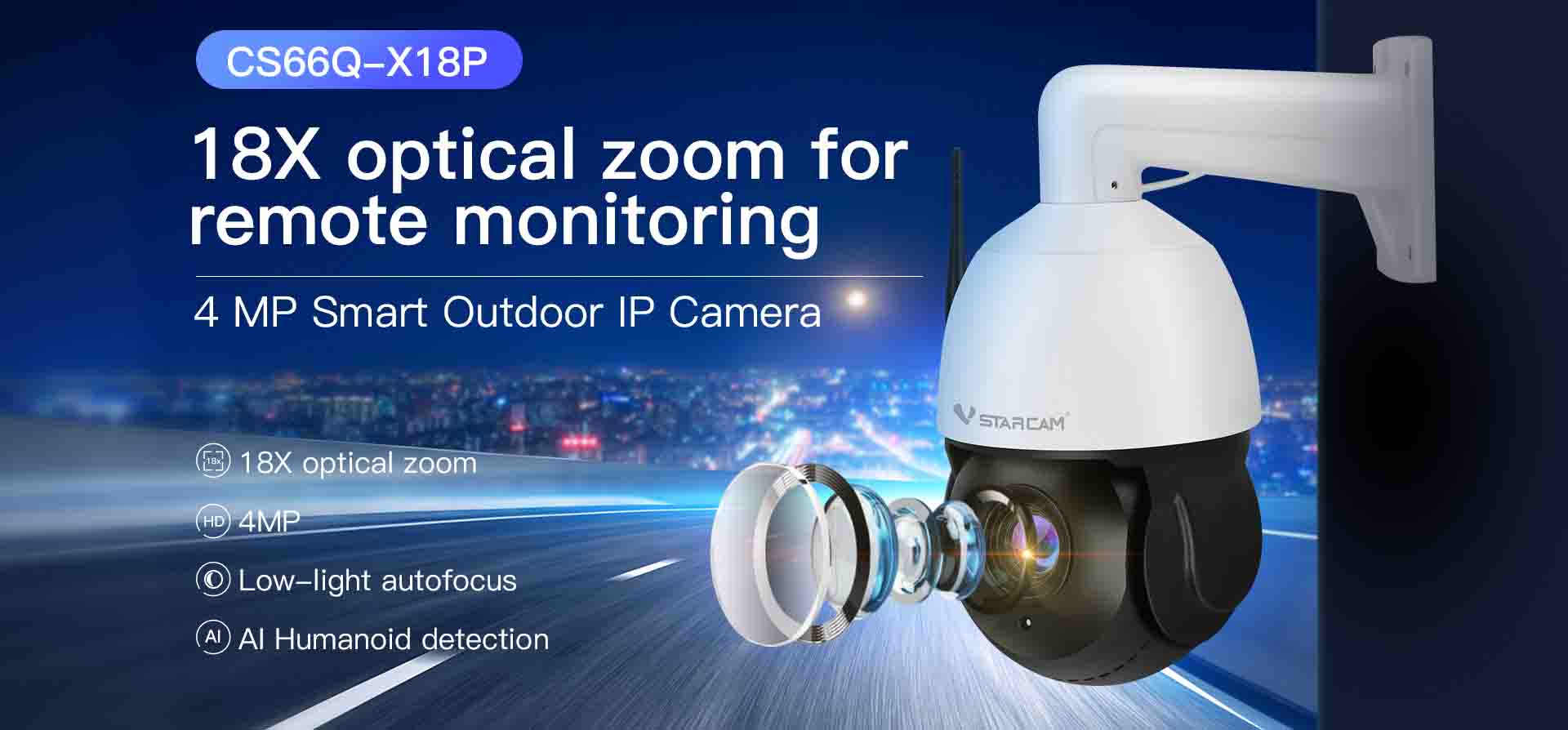

| ✮4 MP Ultra HD |
| ✮18x optical zoom |

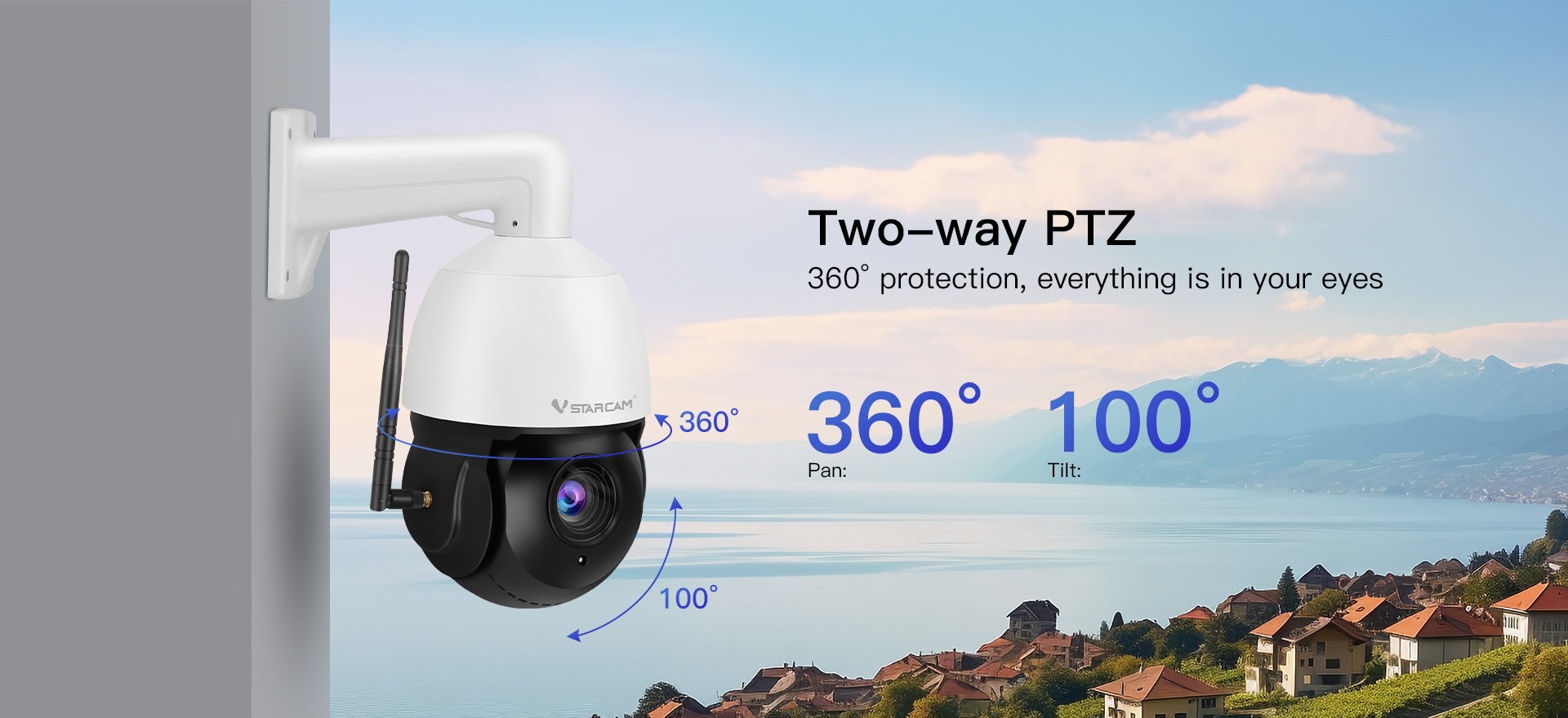

| ✮360 ° rotation, presets cruising |
| ✮6 high-power infrared lights, night vision distance 100 meters |
| ✮ISP image processing technology, preserving true colors |
| ✮Human detection, real time alerts |
| ✮Remote access, view the monitoring areas anytime and anywhere |
| Sorts |
Type |
Parameters |
| System |
Operating system |
Linux |
| Online visitor |
Supports 4 visitors at the same time |
| APP |
O-KAM Pro |
| Collection |

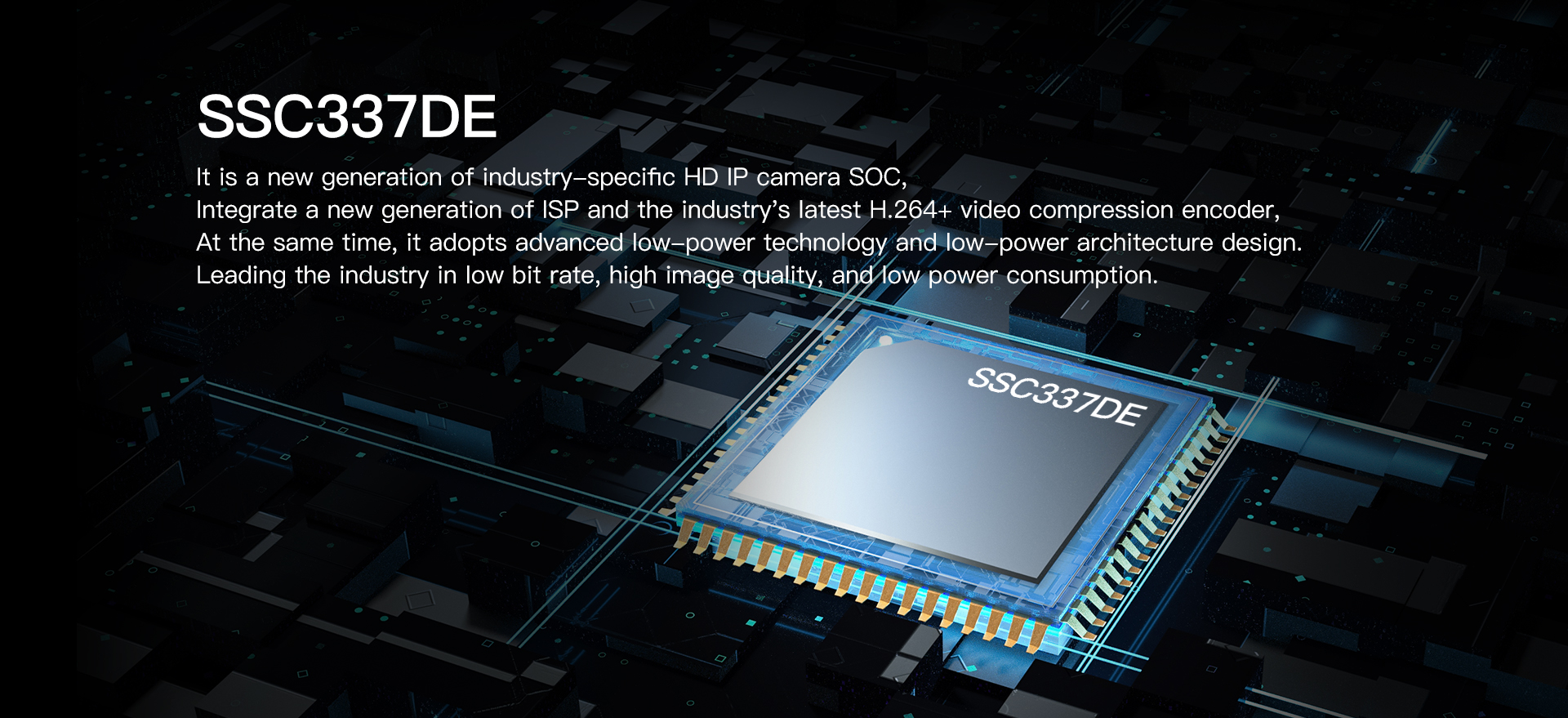

CPU |
Sigmastar |
| Memory |
1Gbit |

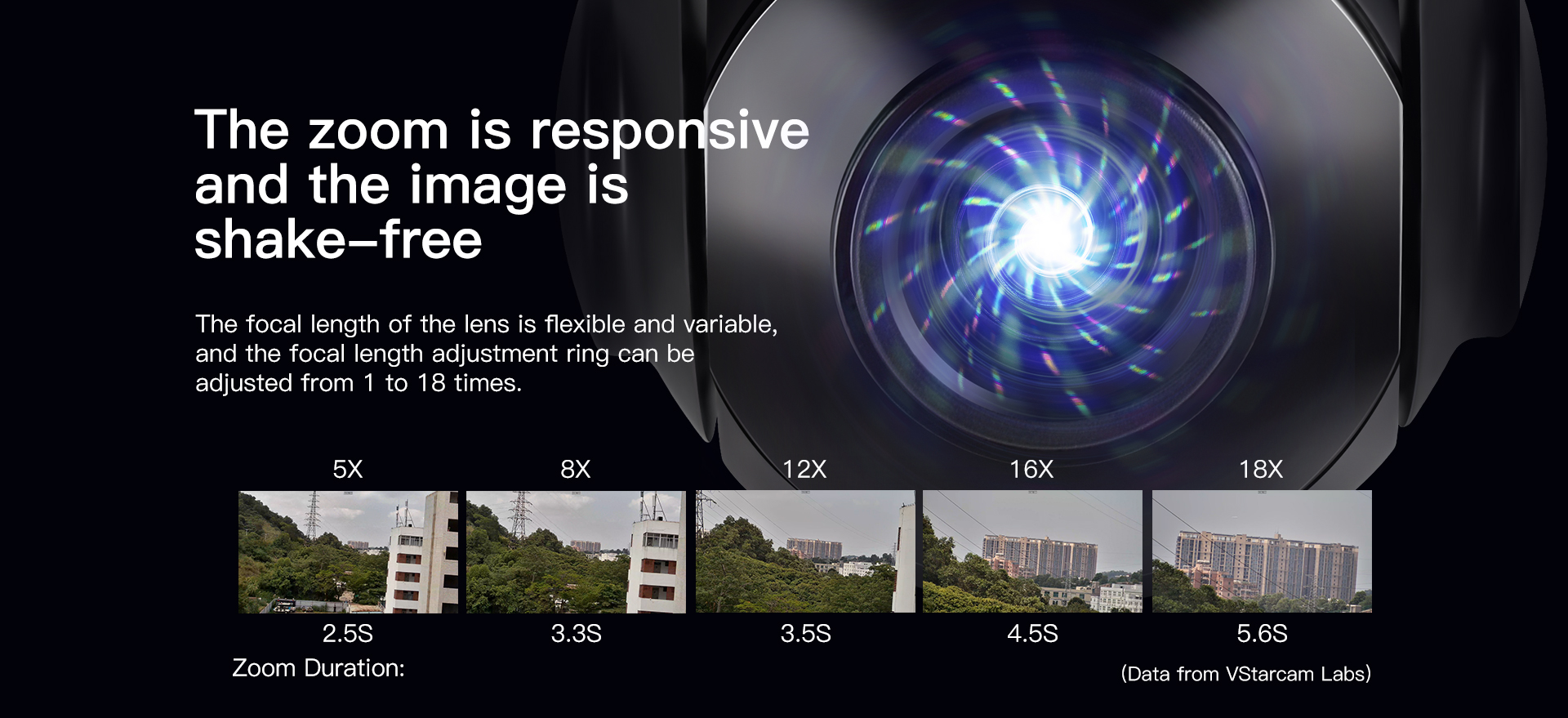

| Lens |
18x optical zoom |
| Image sensor |
1/2.9 CMOS sensor |
| Min. illumination |
0.5Lux (color mode), 0.1Lux (b&w mode) |
| Sensor performance |
Support automatic white balance, automatic gain control and automatic backlight compensation |
| Night Vision |
Dual filter automatic switching, 6*850nm infrared lamps, illumination distance 100 meters |

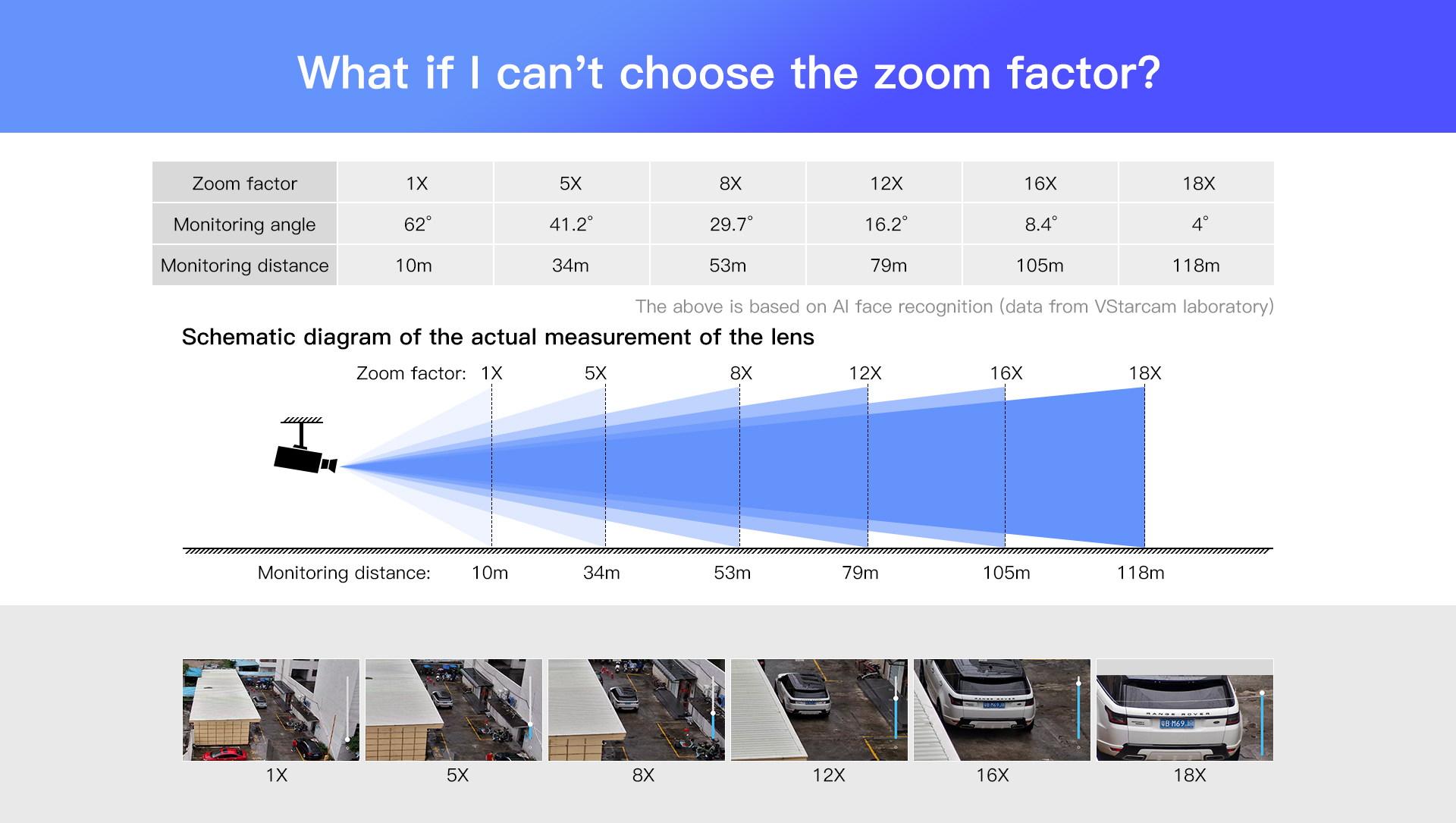

| Viewing angle |
5.9mm～94.4mm varifocal lens/Diagonal viewing angle 62°@1X - 4°@18X |
| Video |
Resolution |
2688*1520P/25FPS/4 MP |
| Compression standard |
H.264+ /H.264 /MJPEF/JPEG |
| Bit rate |
128～4096kbps |
| Image adjustment |
Brightness, contrast, OSD display |
| PTZ |
Rotation angle |
Horizontal 360°/Vertical 95° |
| Preset position |
Supports 16 presets (mobile app only supports 5) |
| Audio |
Input |
Built-in-38dB microphone |
| Output |
Built-in 8Ω2W speaker |
| Sampling frequency/bit width |
8KHz/16bit |
| Compression standard/Bit Rate |
G711A |
| AI |

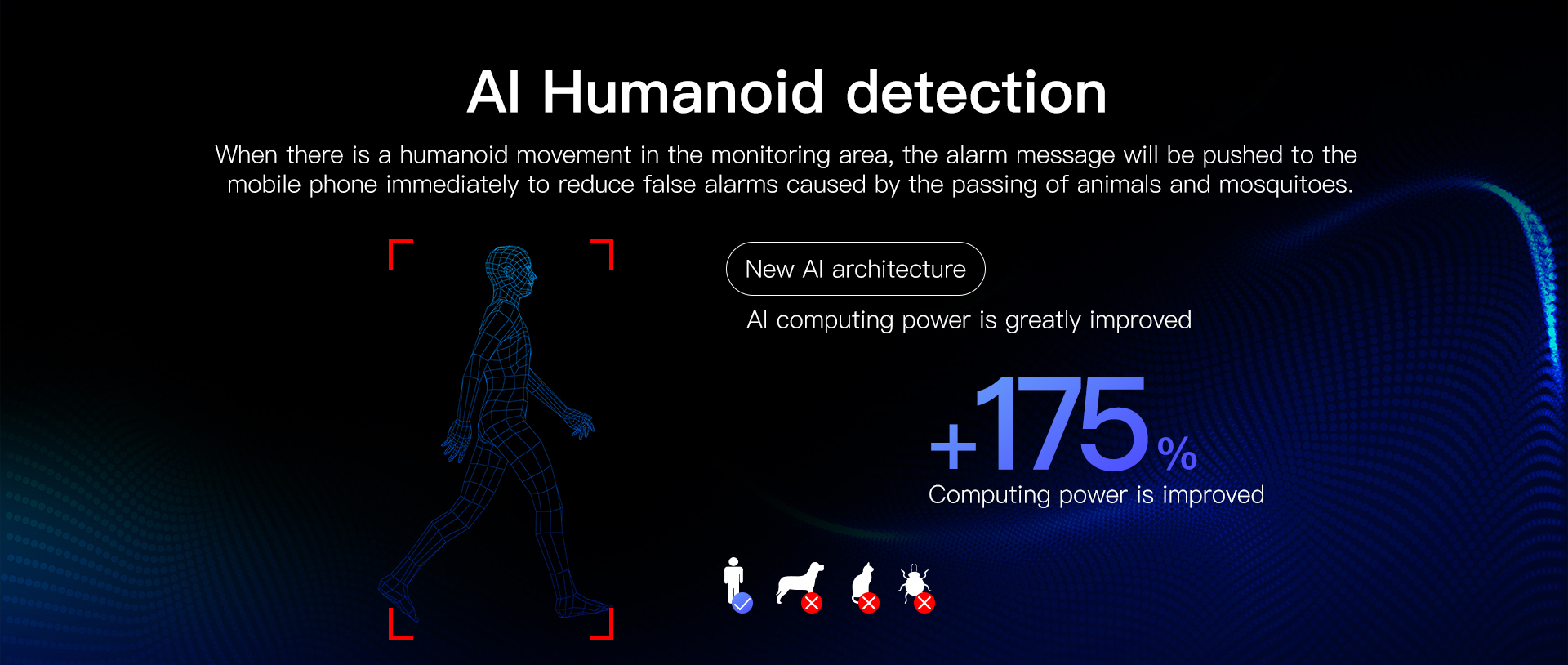

Humanoid detection |
Humanoid detection, filtering invalid video events |
| Human tracking |
When the camera detects a person, it will automatically zoom in and follow their trajectory. |
| Area detection |
Free daub, only monitoring the areas concerned by users |
| Smart notification sound |
Different devices push different sounds, so that you can know exactly which device is triggered |
| Intelligent alarm sound |
Set different equipment alarm sounds according to different scenarios |

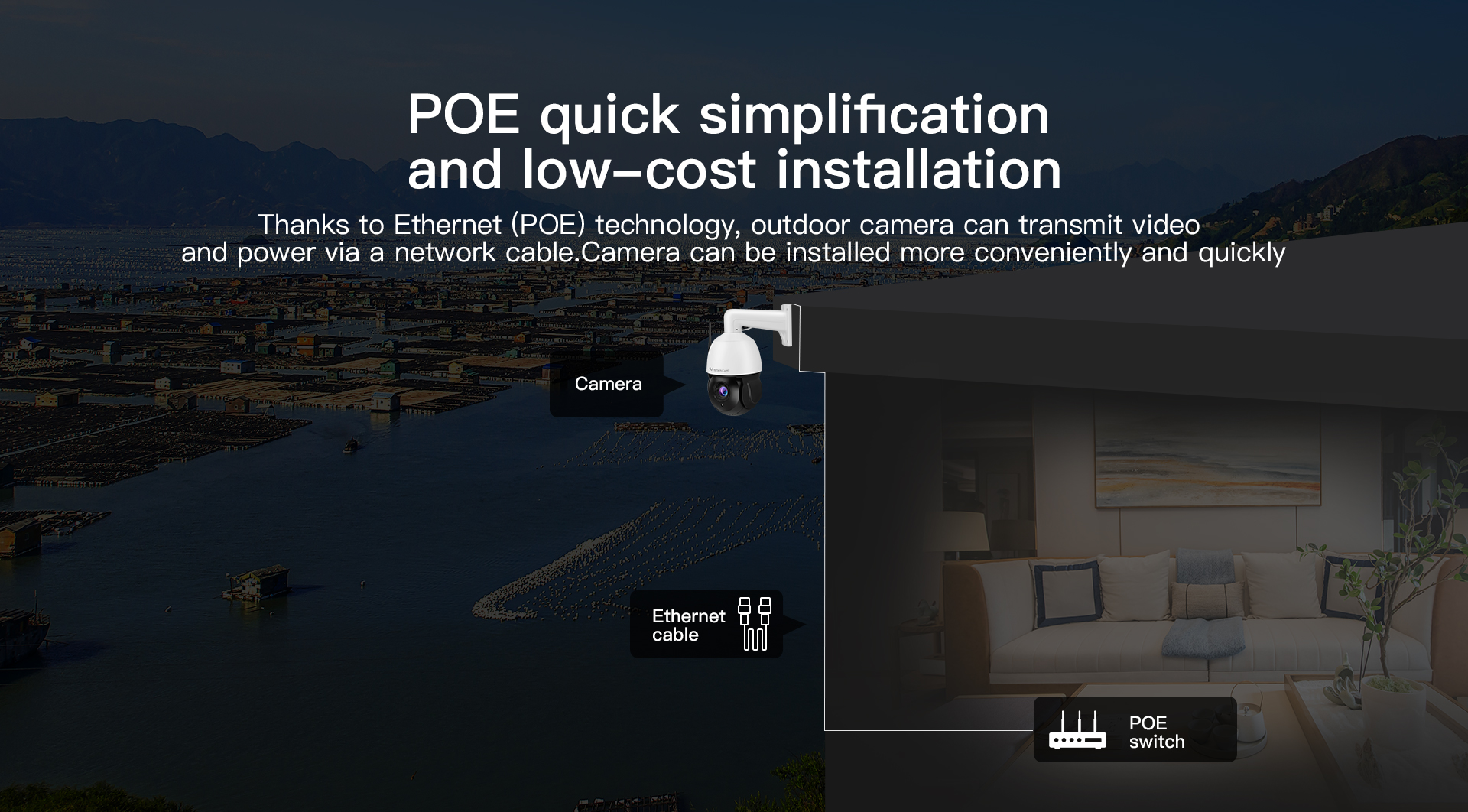

| Network |

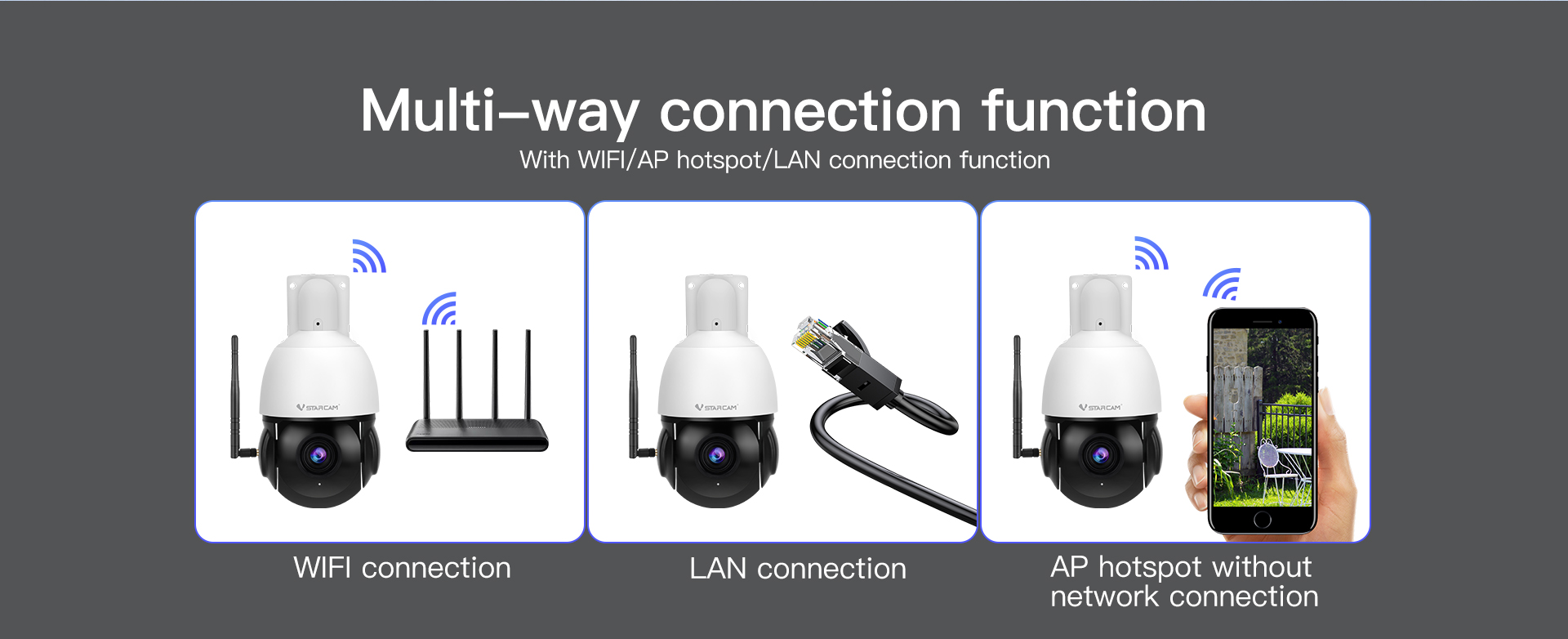

Network interface |
10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P |
| Wireless network |
IEEE802.11b/g/n/ax |
| Wireless frequency |
2.4GHz(WIFI6) |
| Wireless security encryption |
64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |

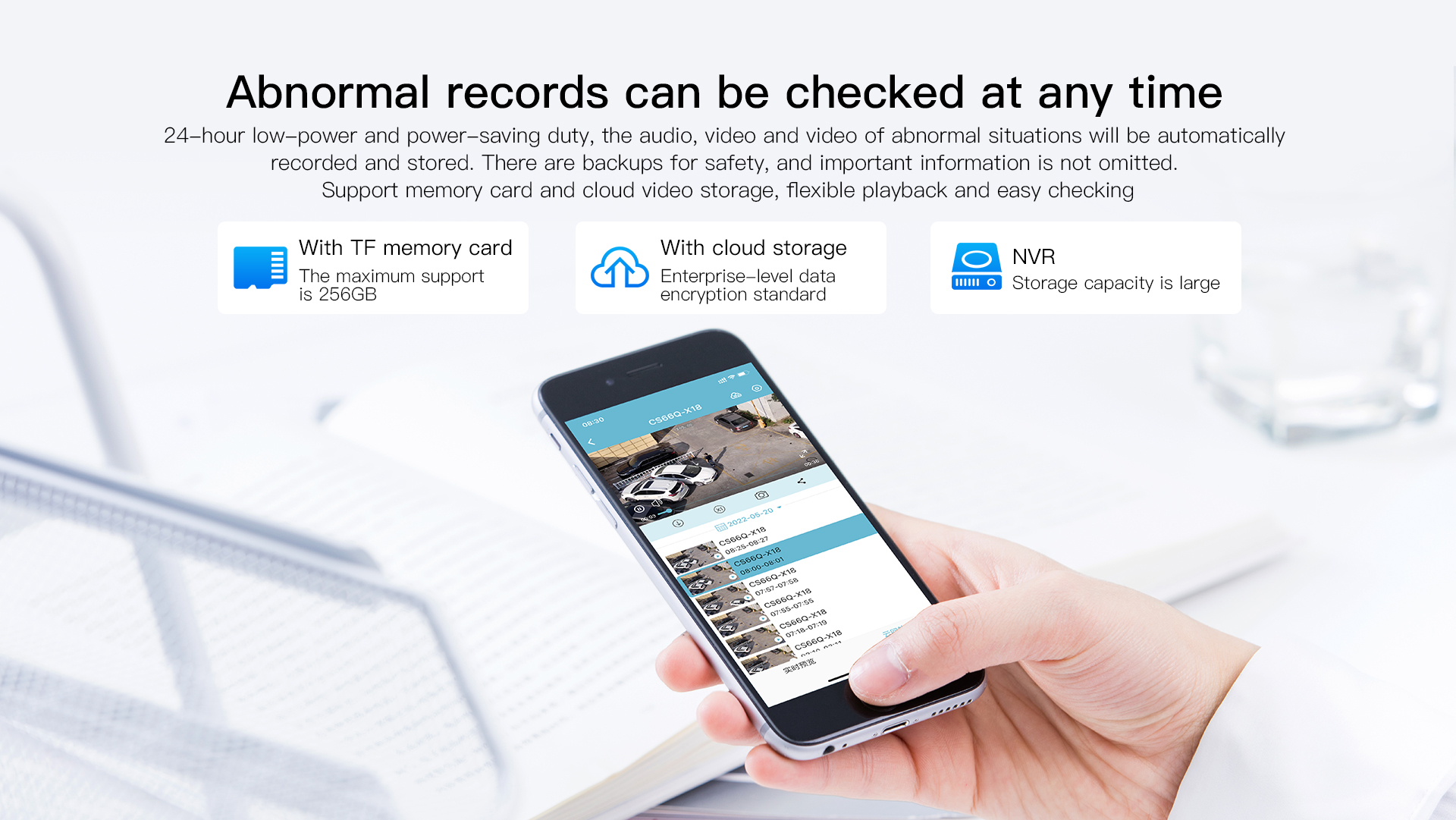

| Storage |
TF card |
Supports T-Flash cards (up to 256GB) |
| Cloud storage |
Support cloud storage, users can purchase according to their needs. |
| Alarm |
Alarm detection |
Motion detection, human detection, human framing, human tracking, siren sound, and area detection |
| Physical Indicators |
Rated voltage |
DC12V±5% |
| Power consumption |
Power: 11.1W (with infrared light on) Maximum power: 16.6W |
| Operating condition |
Working temperature: -10~55 ℃, working humidity<90% |
| Weight |
(Note: in kind prevail） |

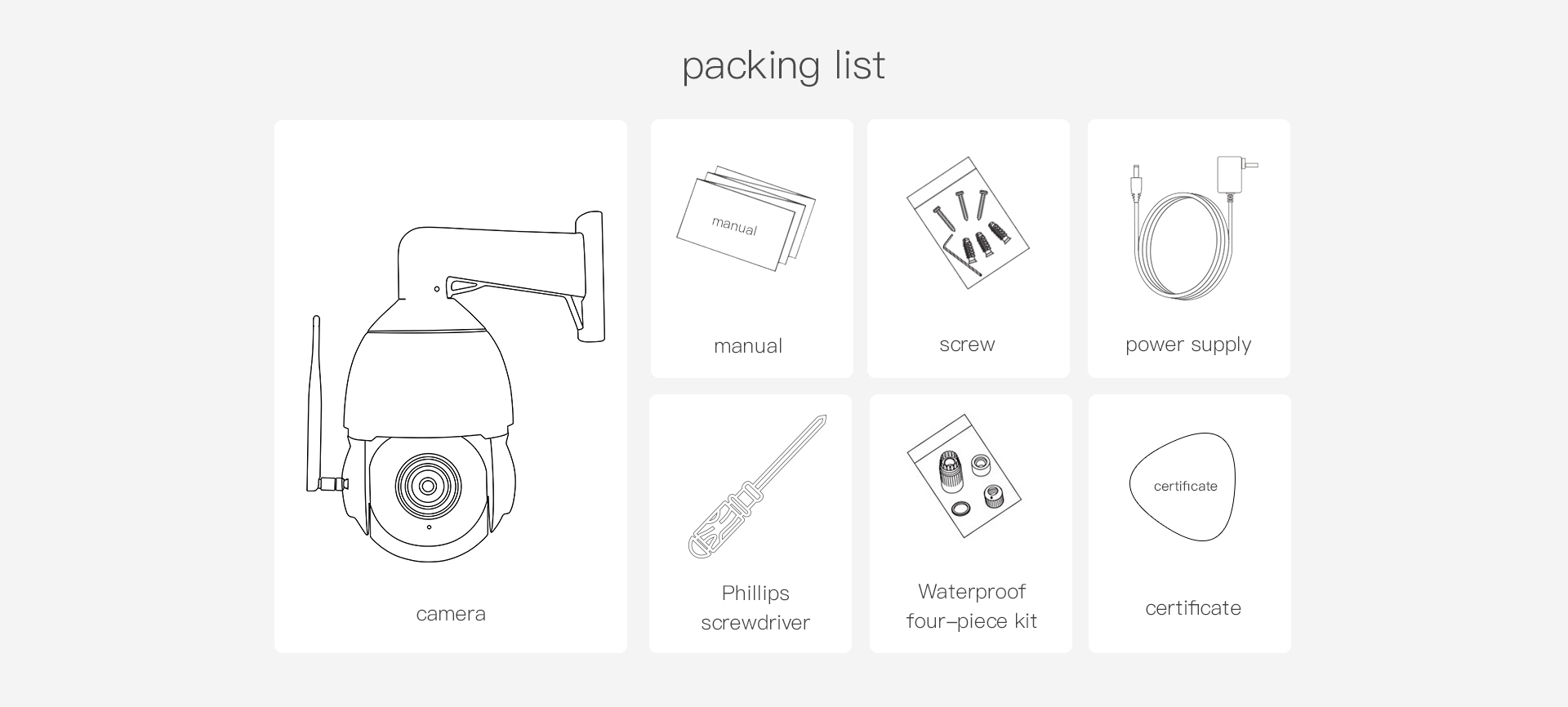

| Packing list |
Camera, screw pack, warning sticker, screwdriver, user manual |
