| System |
Operation system |
Embedded Linux |
| Online visitor |
Support 4 visitors at the same time |
| Collection |
Image sensor |
1/3 inch Progressive Scan CMOS |
| Minimum illumination |
0.5Lux（Color mode）,0.1Lux（B&W Mode） |
| Lens/View angle |

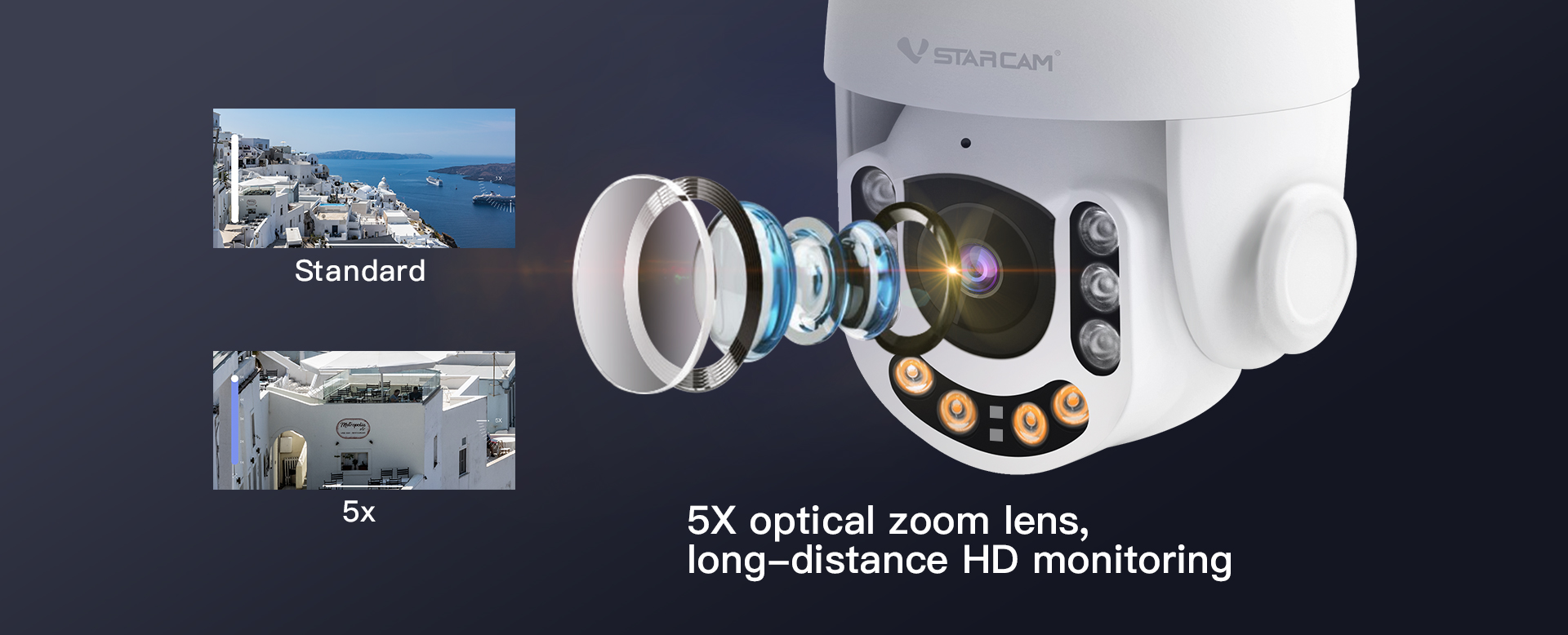

3.5-9.5mm zoom lens/ 99.3～40.5°(Diagonal) |
| Night vision |

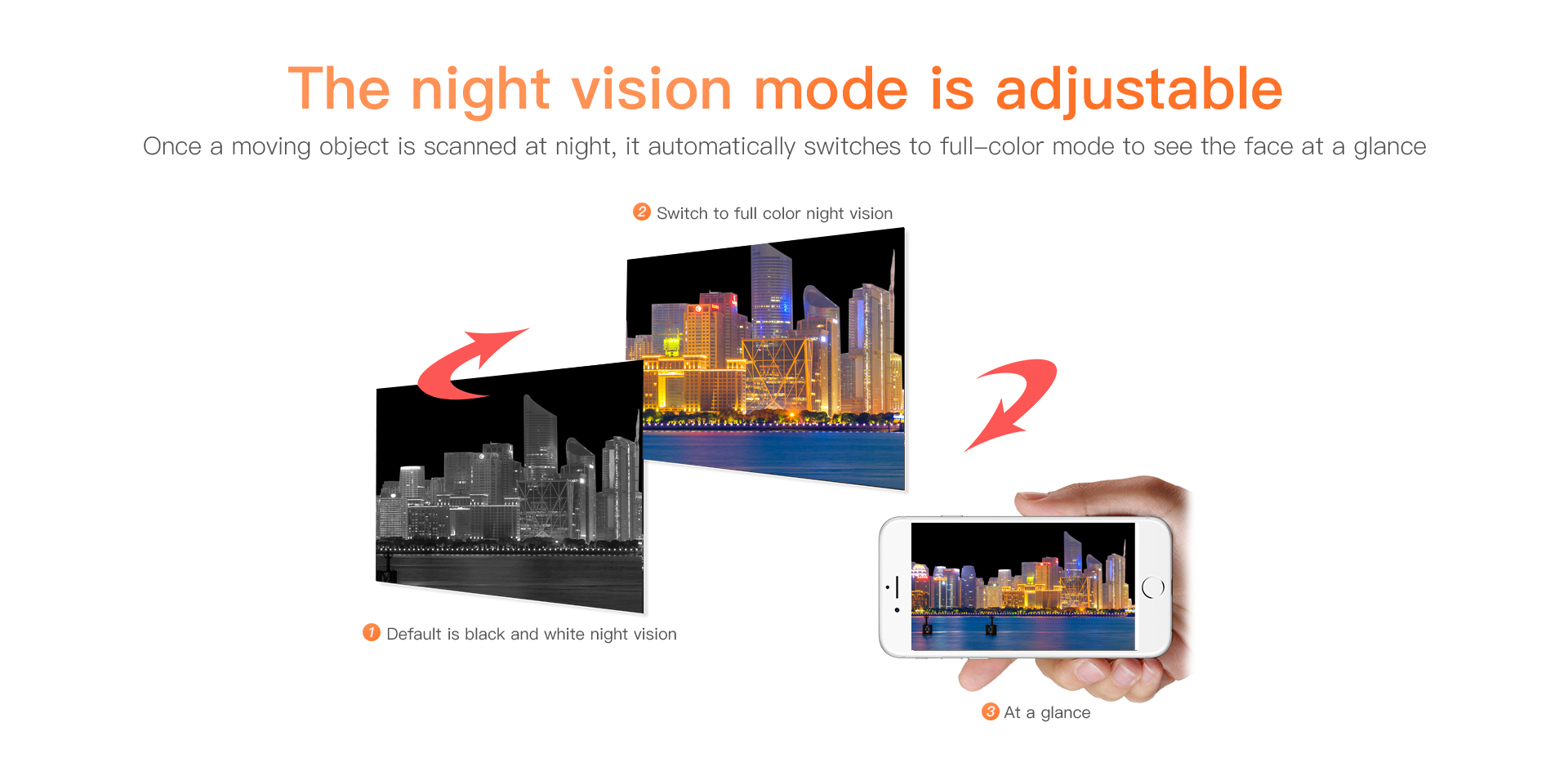

IR-CUT with automatic switching, 6 pcs 850nm IR LED lights(1 pcs blue alarm light and 1 pcs red alarm light ) ; 6 pcs high-power LED lights, Irradiation distance:15-20 m |
| Video |
Encode format |
H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG |
| Multiple streams |
2688*1520@15fps /640×360@15fps |
| Bit Rate/Max Fps |
128～4096kbps/30pfs |
| Image adjustment |
Brightness and contrast can be adjusted |
| Audio |
Input |
Built in -28±5dB microphone |
| Output |
Built in 8Ω2W speaker |
| Sampling frequency /width |
8KHz/16bit |
| Compression standard |
ADPCM/32kbps |
| Network |
Network interface |
10Mbps/100Mbps adaptive /RJ45 interface |
| Protocols |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. |
| Wireless LAN |
IEEE802.11b/g/n |
| Wireless LAN Frequency |
2.4~ 2.4835GHz |
| Wireless LAN security |
64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption |
| Pan/Tilt |
Pan-tilt |

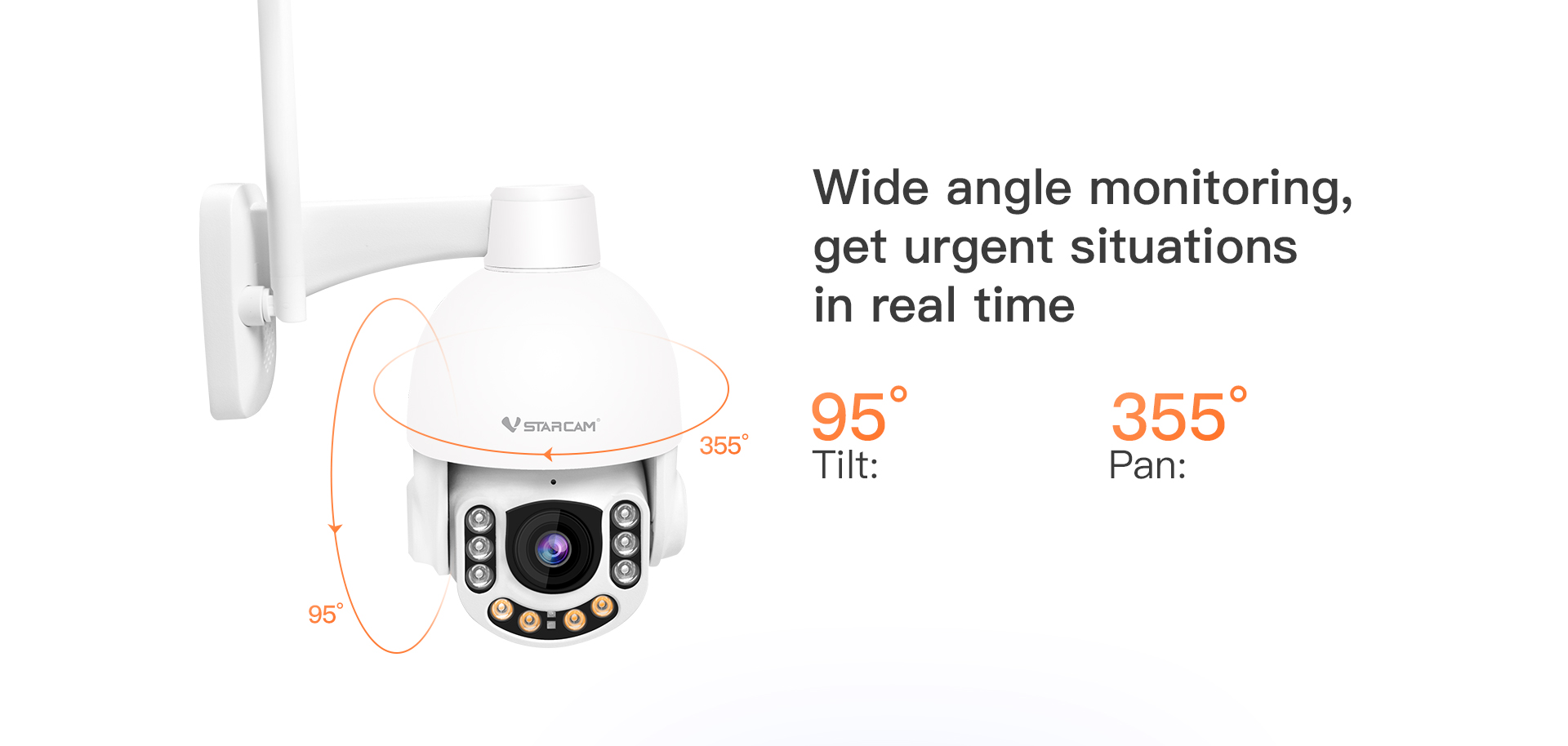

Pan：355°, Tilt：95° |
| Preset position |
PC Client：support 16 positions, Mobile APP: support 5 positions |
| Memory |
Storage function |

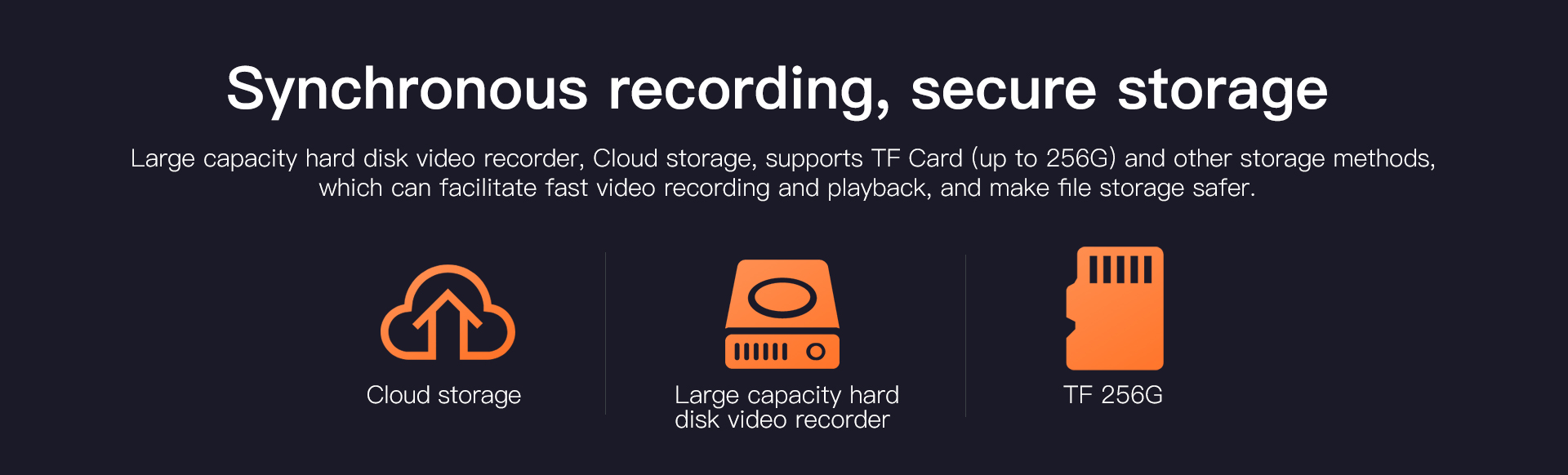

Support TF card, Maximum support 256GB; Cloud Storage; NVR；NAS |
| Alarm |
Alarm detection |
Support Motion detection, Humanoid detection, Humanoid tracking, Smoke sound detection, Absence detection |
| Physical Environmental |
Rated voltage |
DC12V 2A ±5% |
| Power consumption |
Rated power: 4.08W (with IR LED light on)/ Max power: 13.8W |
| Operating condition |
Temperature:-10～50℃,Humidity:＜90% |
| Weight |
Net: 965g (Note: in kind prevail) |
| Package size |
205x195x130mm(L*W*H) |
