| Sorts |
Type |
Parameters |
| System |
Operating system |
Embedded Linux |
| |
Online visitor |
Supports 4 visitors at the same time |
| Collection |
Image sensor |
1/3"CMOS |
| |
Lens |
4.7-141mm zoom lens |
| |
Aperture |
F1.5-F4.0 |
| |
Minimum illumination |
0.1 Lux（B&W mode），0.5 Lux（Color mode） |
| |
Viewing angle |
D：64.2°@1X，3.9°@30X |
| |
Night vision |
IR-CUT with auto-switching，6 pcs 850nm IR LED lights+3 pcs laser lights; Irradiation distance: 100~200 m |
| Video |
Compression standard |
H.264 main profile/H.264+ main profile/Motion-JPEG/JPEG |
| |
Multi-stream |
Main stream: 1520P（2688*1520）@15fps/1440p(2560×1440)@30fps
Substream: 360p(640×360)@15fps
|
| |
Bit rate |
128～4096kbps |
| |
Maximum frame rate |
30fps |
| |
Image adjustment |
Brightness and contrast are adjustable |

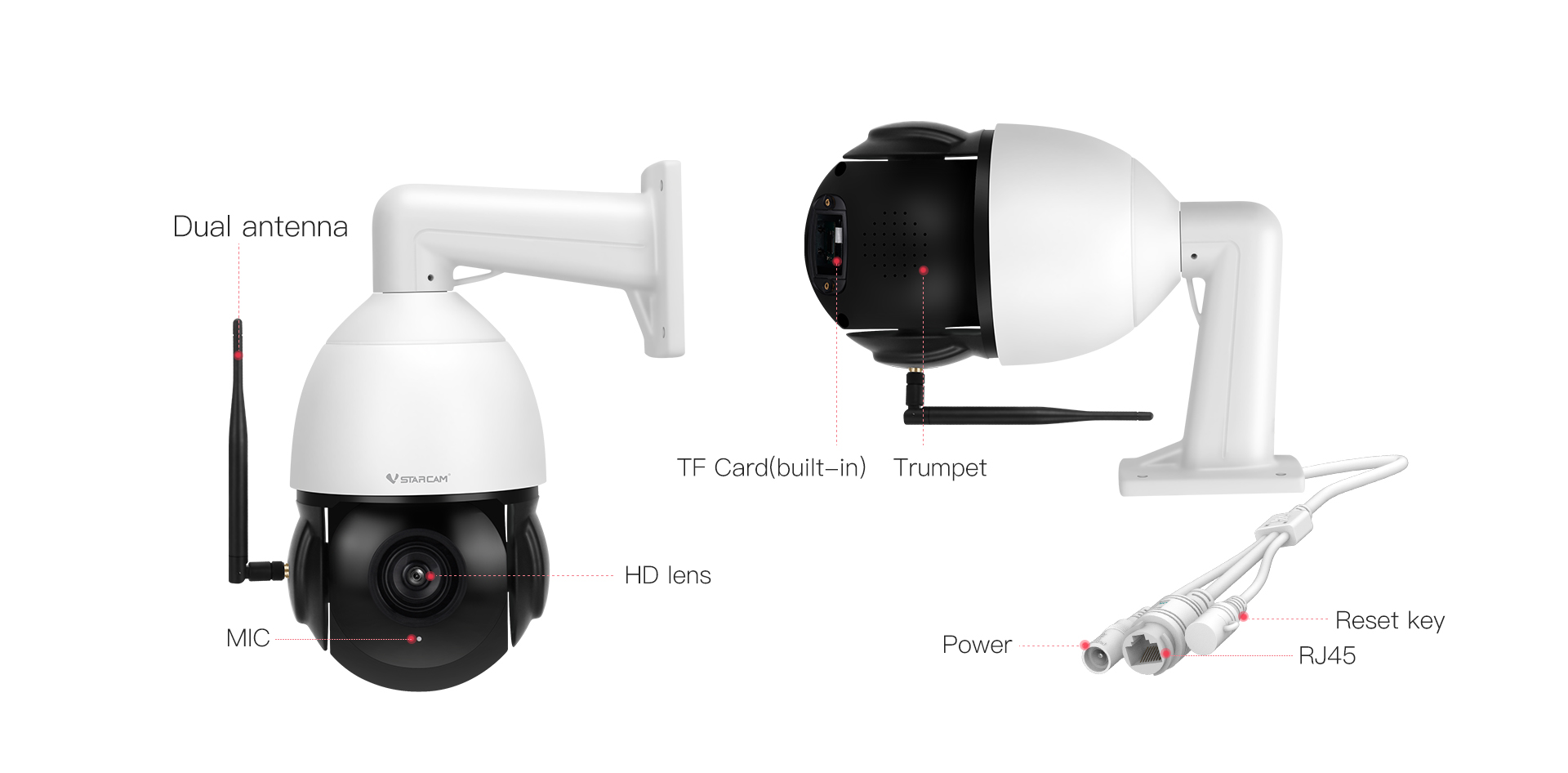

| Audio |
Input |
Built-in －28dB microphone |
| |
Output |
Built-in 8Ω2 W speaker |
| |
Sampling frequency/bit
width |
8KHz/16bit |
| |
Compression standard/Bit Rate |
G.711/32kbps |
| Network |
Network interface |
10Mbps/100Mbps adaptive /RJ45 |
| |
Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P，ONVIF etc. |
| |
Wireless network |
IEEE802.11b/g/n；AP |
| |
Wireless frequency |
2.4G( WiFi6 ) |
| |
Wireless security encryption |
64/128-bit WEP/WPA-PSK/WPA2-PSK data
encryption |
| Pan & Tilt |
Pan & Tilt |
Pan 360°/Tilt 98° |
| |
Preset position |
Supports 16(Mobile phone App supports 5) preset positions |
| Storage |
Storage functions |
Supports T-Flash card(max supports 256GB); Cloud storage; NVR；NAS |
|
Alarm |
Alarm detection |
Supports Motion detection; Humanoid detection; Humanoid framing; Siren alarm; Absence detection; Delimitation detection |
| Physical Indicators |

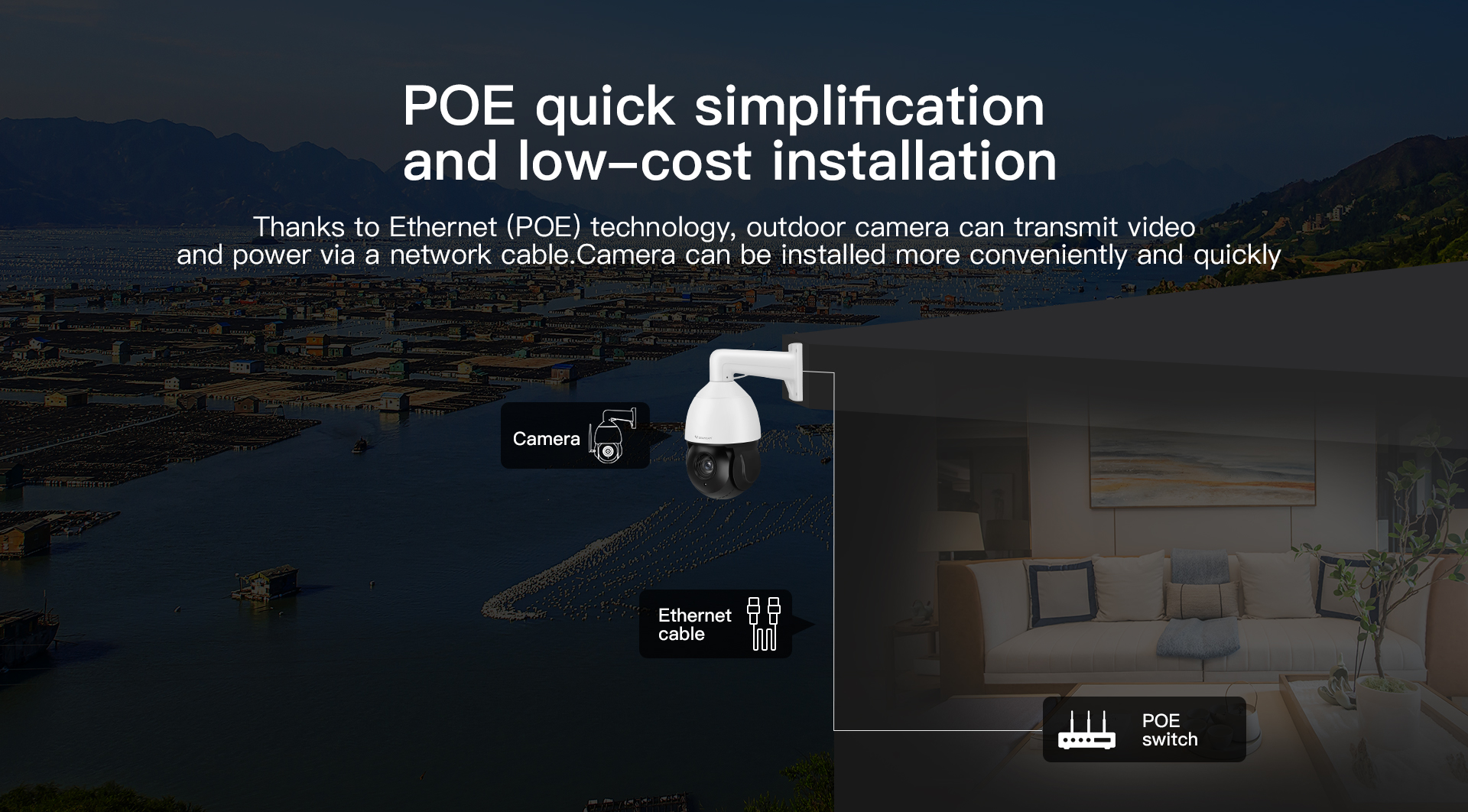

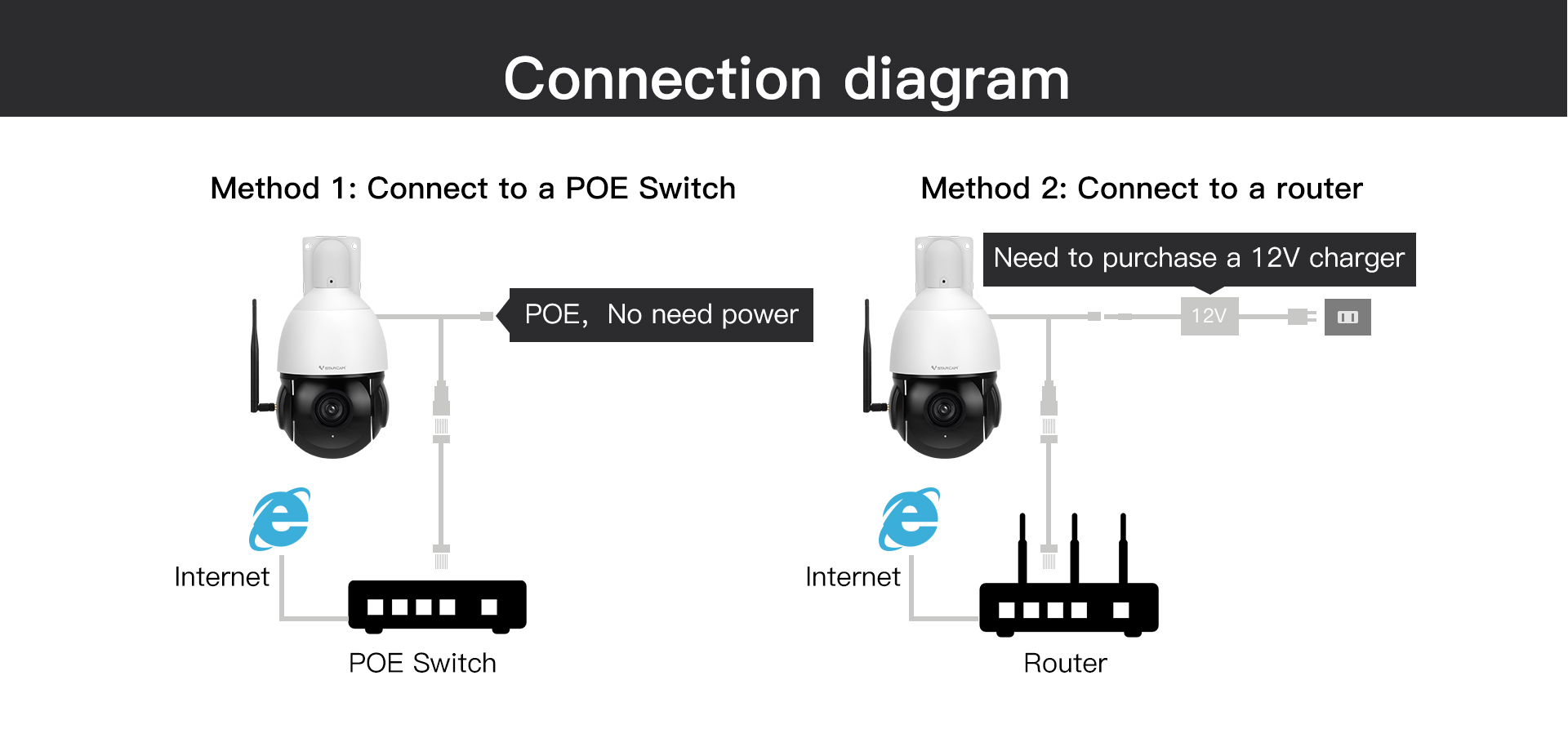

Rated voltage |
DC12V or POE（48V） |
| |
Power consumption |
Standby power: 2.2W, Rated power：12.8 W(with IR LED lights ON)/Max power：22 W |
| |

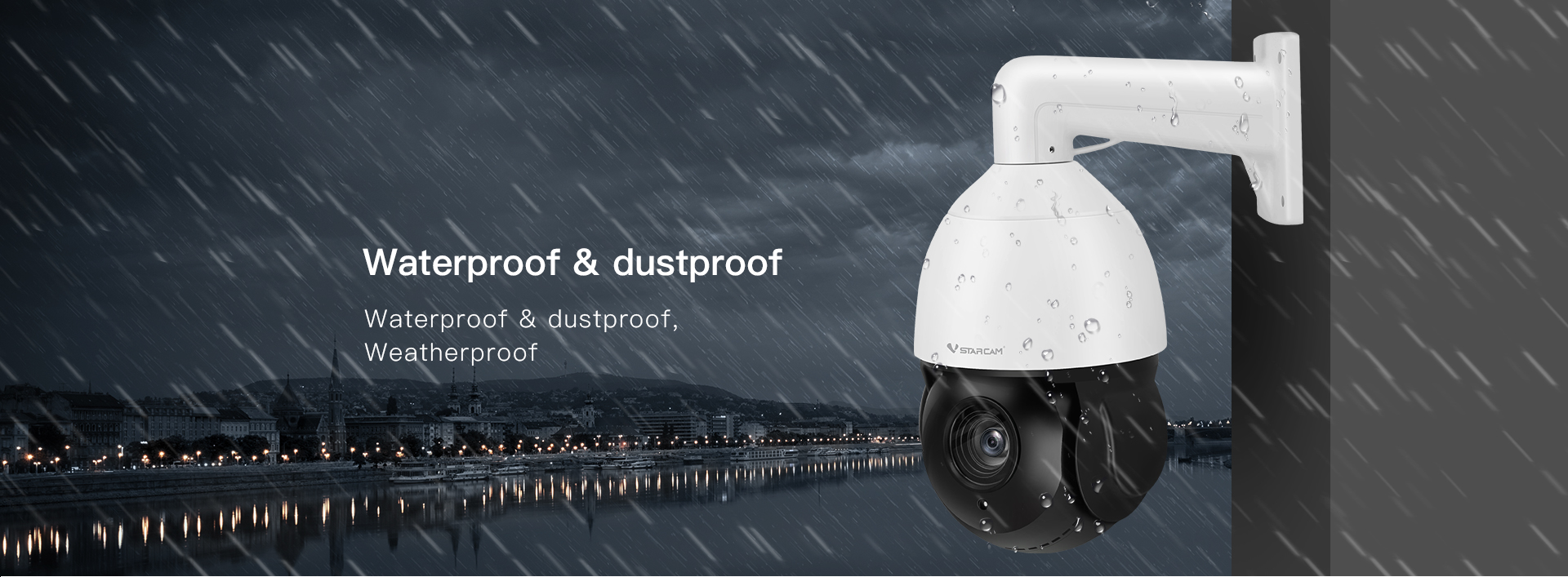

Waterproof standard |
IP65 |
| |
Operating condition |
Temperature: -10～50℃; Humidity: ＜90% |
| |
Weight |
Net：2400g （Note: in kind prevail） |
| |
Size |
420x320x235mm（LxWxH） |
