| Features |

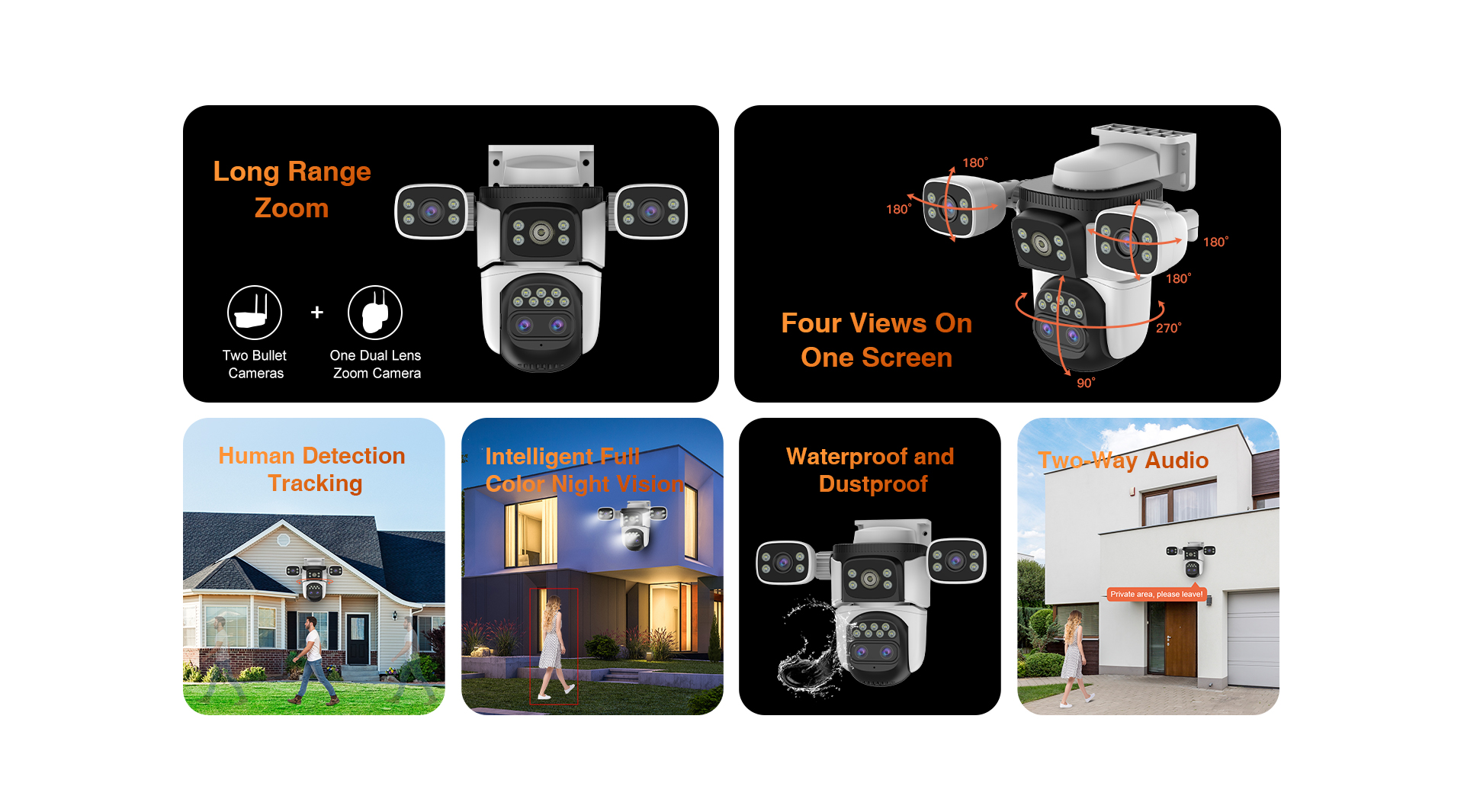

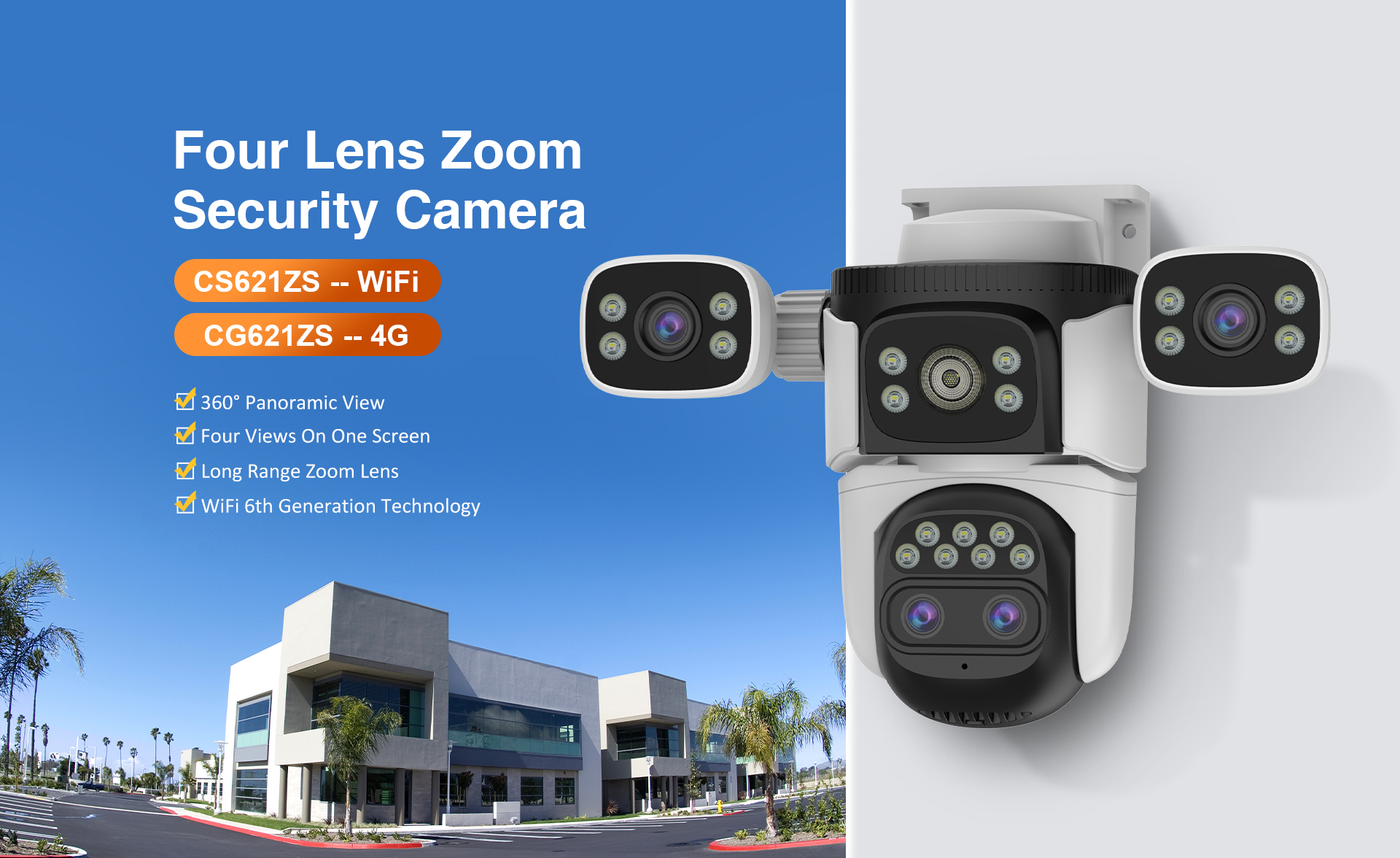

| ✮Four-lens camera: two fixed lens + two pan&tilt hybrid zoom lens, support ultra long range zoom |

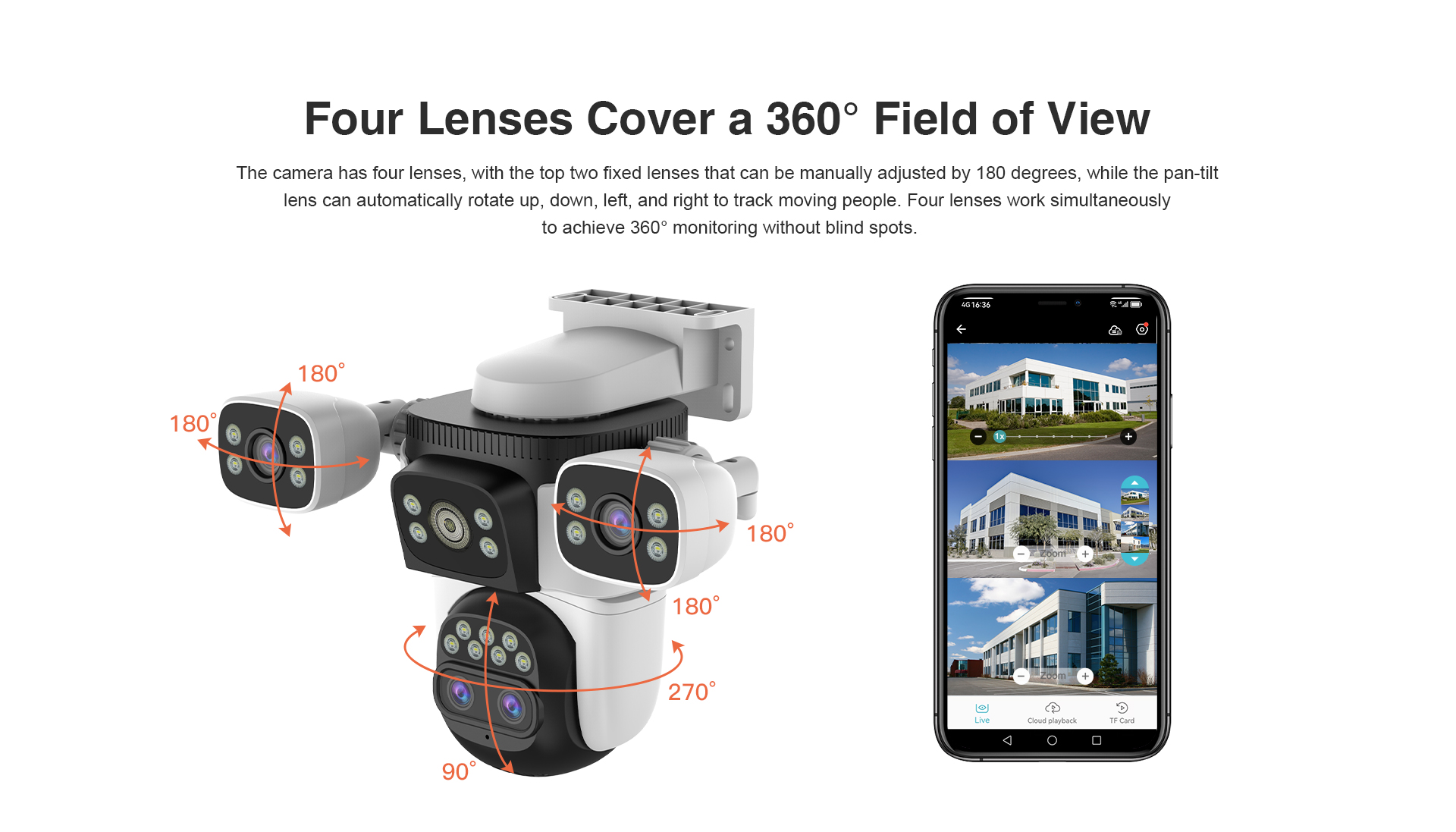

| ✮Two fixed lens support manual horizontal and vertical rotation of 180° |
| ✮F2.0 large aperture, more light inputs, clearer night vision |
| ✮ISP image processing technology, preserving true colors |
| ✮Human detection, real time alerts |
| Sorts |
Type |
Parameters |
| System |
Operating system |
Linux |
| Online visitor |
Supports 4 visitors at the same time |

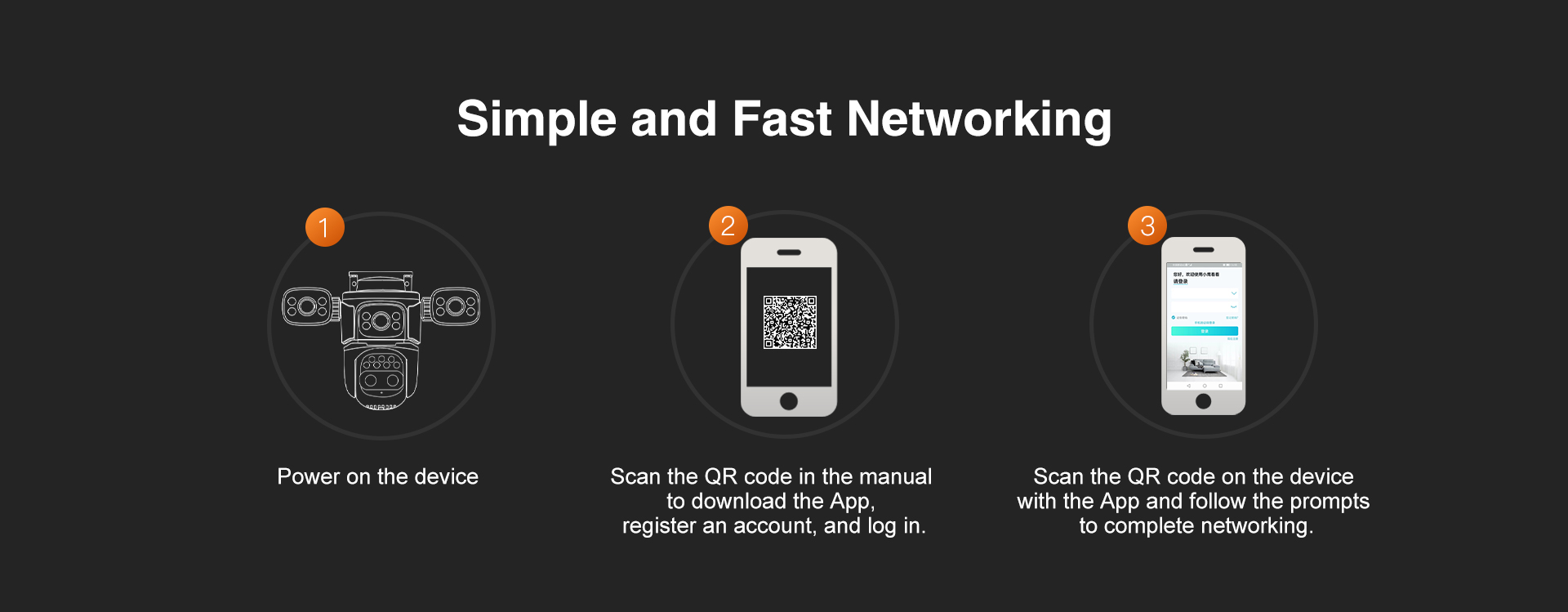

| APP |
O-KAM Pro |
| Collection |
CPU |
Ingenic |
| Memory |
512Mb |
| Lens |
Fixed lens：4mm+4mm，Pan&tilt lens：4mm+12mm |
| Image sensor |
1/2.7" 1080p progressive scan CMOS sensor |
| Minimum illumination |
0.5Lux (color mode), 0.1Lux (b&w mode) |
| Sensor performance |
Support automatic white balance, automatic gain control and automatic backlight compensation |
| Night vision |
Black and white night vision, full color night vision |
| View angle |
4mm：91°；12mm：29° |
| Video |
Resolution |
1080P 1920x1080/15FPS/2MP |
| Night vision |
Black and white night vision, full color night vision |
| Compression standard |
H.264 main profile/Motion-JPEG/JPEG |
| IR control |
IR-CUT, soft photosensitive control |
| Bit rate |
128～4096kbps |
| Image adjustment |
Brightness, contrast, OSD display |
| Audio |
Input |
Built-in -38dB microphone |
| Output |
Built-in 8Ω1W speaker |
| Sampling frequency/bit width |
8KHz/16bit |
| Compression standard/Bit Rate |
G711A |
| Pan/Tilt |
Rotation angle |
Pan: 270° tilt: 90° |
| Network |
Network interface |
10Mbps/100Mbps, adaptive/RJ45 |
| Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P |
| Wireless network |
IEEE802.11b/g/n |
| Wireless frequency |
2.4G |
| Wireless security encryption |
64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |
| Storage |
External TF card |
Supports T-Flash cards (up to 256GB) |
| Cloud storage |
Support cloud storage, users can purchase according to their needs. |
| Alarm |
Alarm detection |
Motion detection, human detection, human framing, human tracking, siren sound, and area detection |
| Physical Indicators |
Rated voltage |
DC12V±5% |
| Power consumption |
Power: 6.72W (0.56A) Maximum power: 10.68W (0.89A) |
| Operating condition |
Working temperature: -10~55 ℃, working humidity<90% |
| Weight |
Net weight: 638g Gross weight: 1218g |

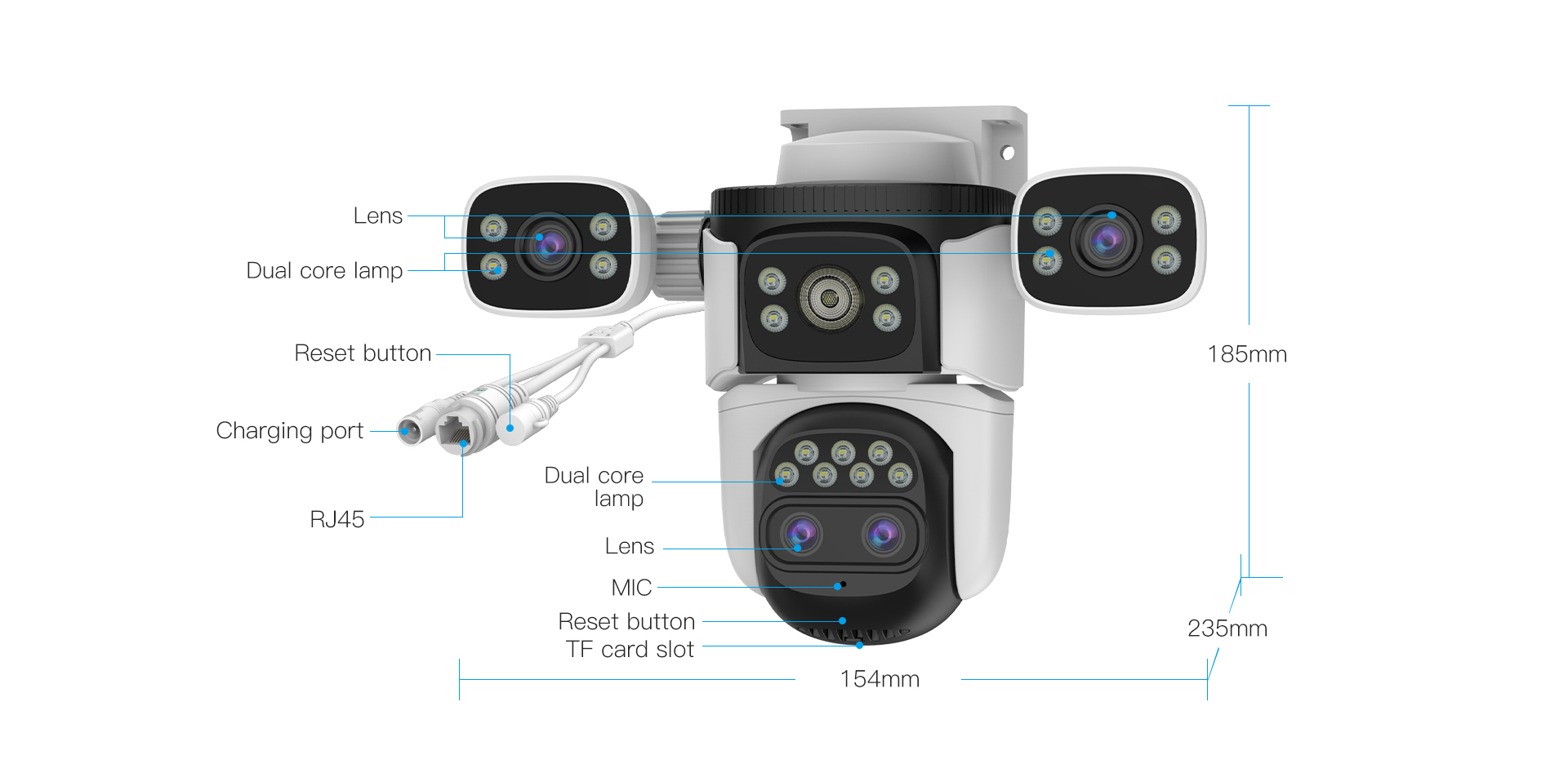

| Camera size |
154x235x185mm |
| Packaging box size |
255x210x165mm |
| Carton size |
525x435x525mm,12PCS/CARTON |
