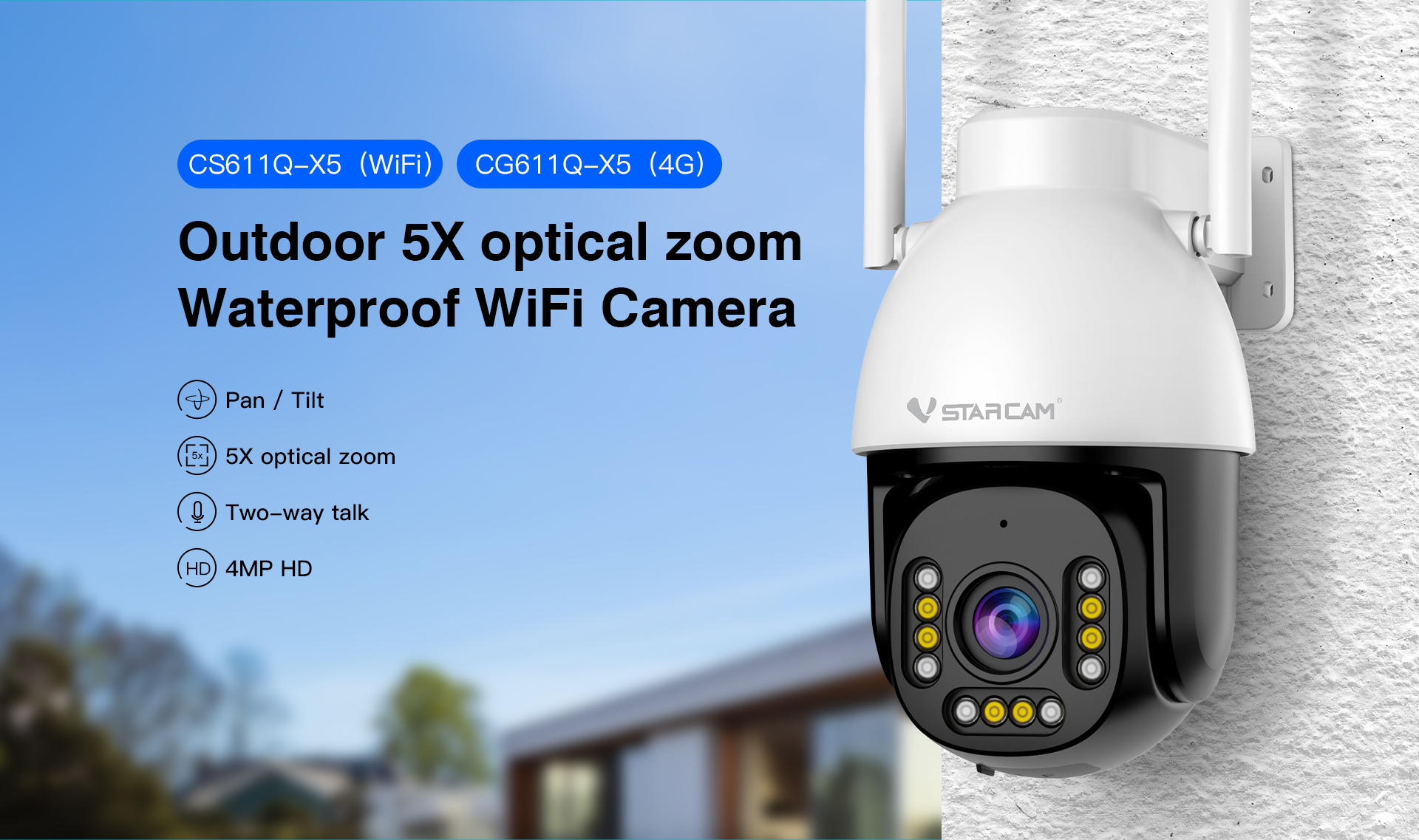

| 4 MP Ultra HD |

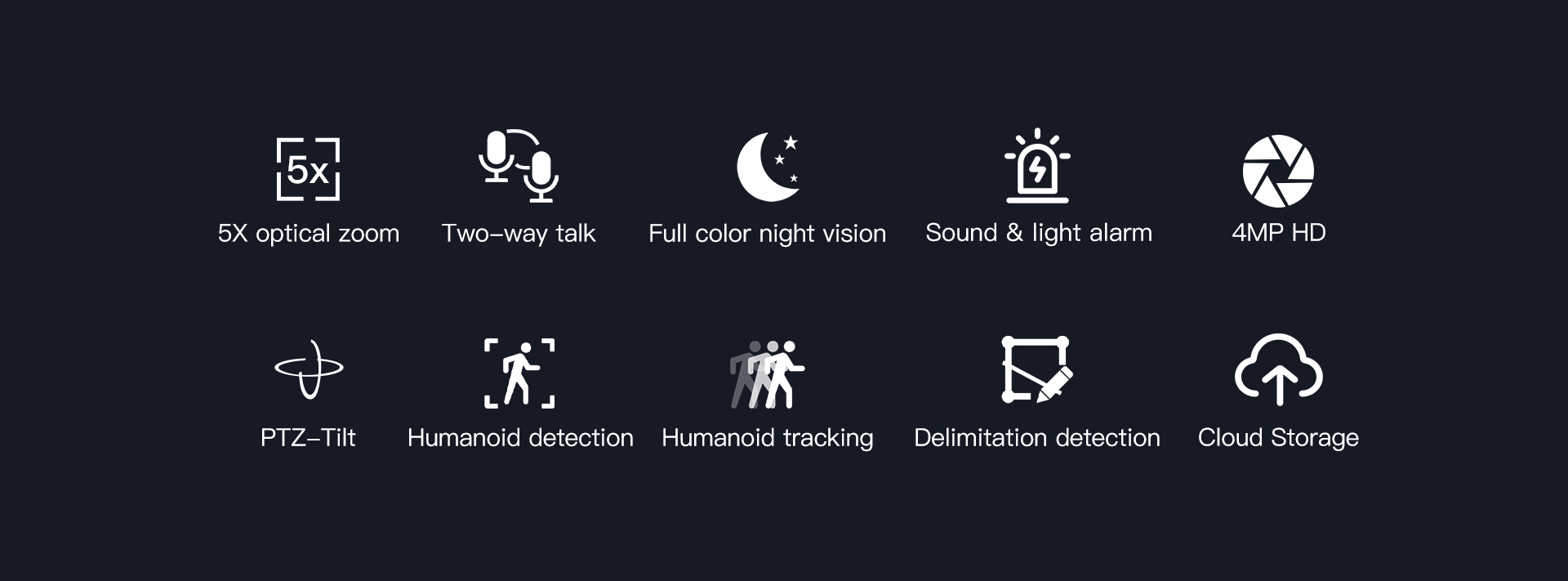

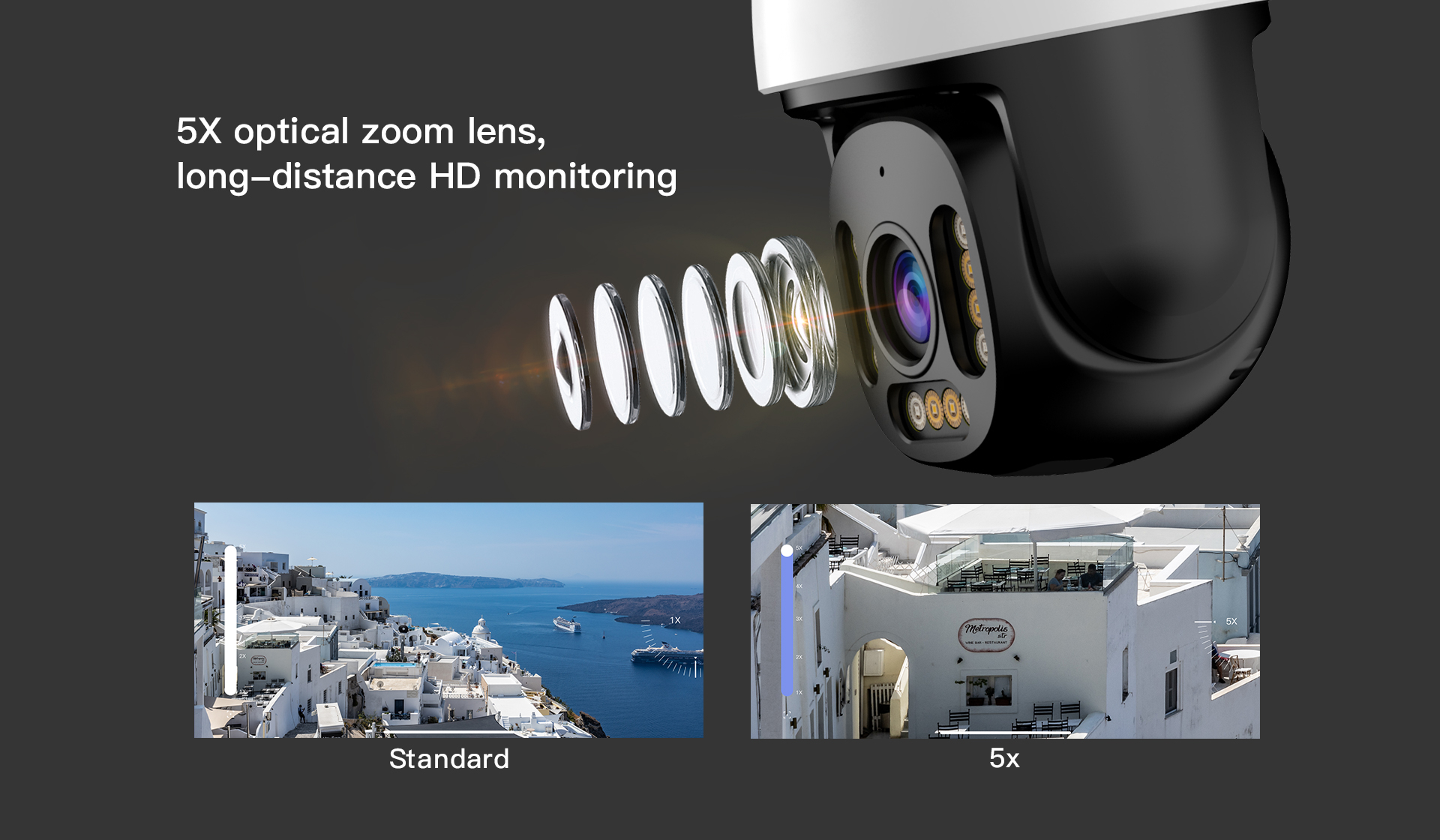

| ✮5x optical zoom, long-distance high-definition monitoring |
| ✮Soft light design，24h color imaging |
| ✮ISP image processing technology, preserving true colors |
| ✮Human detection, real time alerts |
| ✮2.4G/5G WiFi.The wireless signal is strong and stable, and the video won't sutter. |
| Sorts |
Type |
Parameters |
| System |
Operating system |
Linux |
| Online visitor |
Supports 4 visitors at the same time |
| APP |
O-KAM Pro |
| Collection |
CPU |
Sigmastar 337DE |
| Memory |
1Gbit |
| Lens |
5x zoom lens/diagonal 99.3 ° @1X~40.5 °@5X |
| Image sensor |
1/2.9 CMOS sensor |
| Minimum illumination |
0.01Lux |
| Sensor performance |
Support automatic white balance, automatic gain control and automatic backlight compensation |
| Night Vision |
Dual filter automatic switching, 6pcs 850nm infrared lights, 6 high-power white lights, 4 red and blue alarm lights, illumination distance 15-20 meters |
| PTZ |
Pan/Tilt |

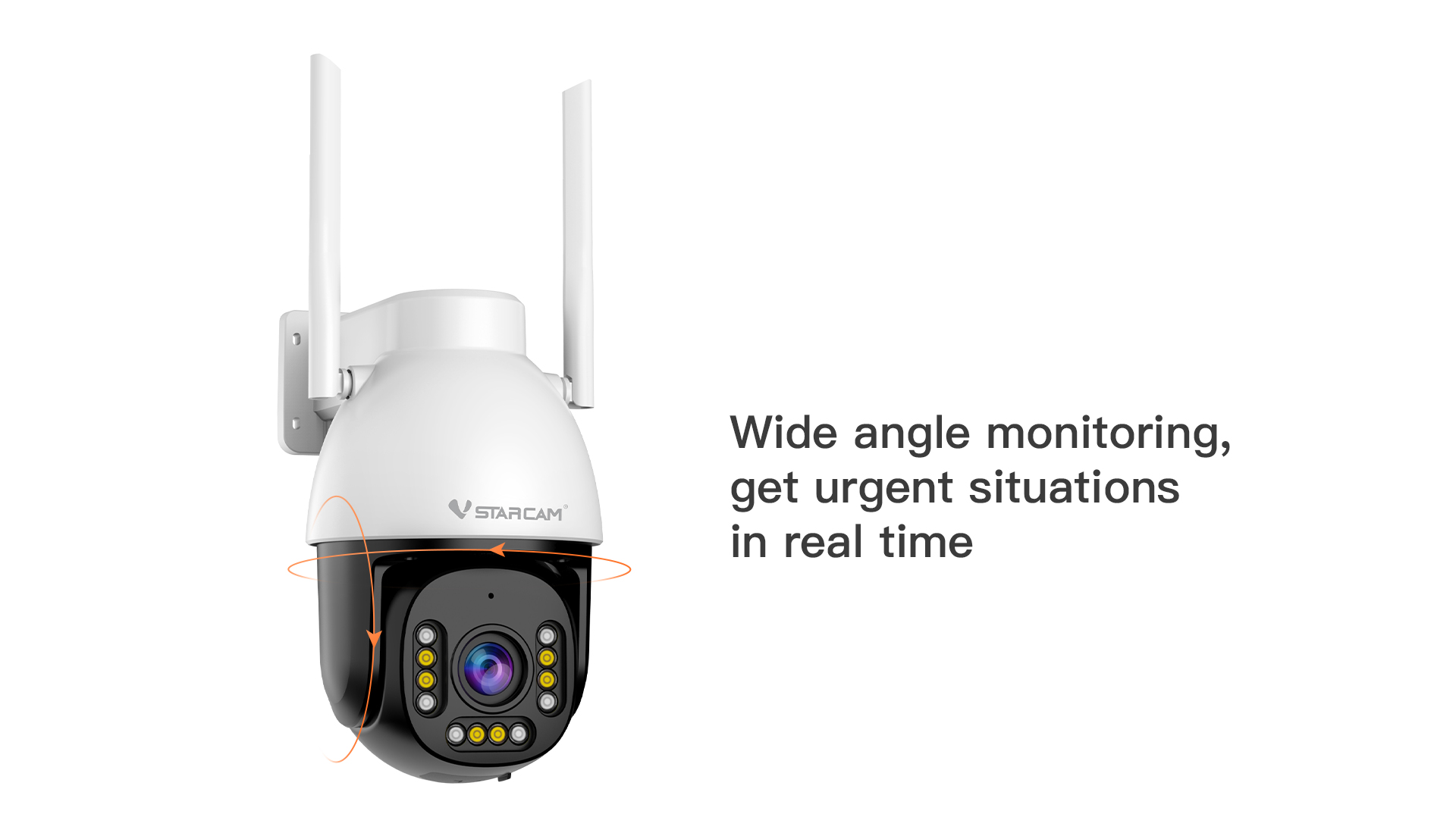

Pan 310°/Tilt 90° |
| Pre-positions |
Supports 16 preset positions on PC, 5 on mobile |
| Video |
Resolution |
2688*1520P/25FPS/400w |
| Night Vision |
Full color night vision, infrared night vision |
| Compression standard |
H.264+ /H.264 /MJPEF/JPEG |
| Bit rate |
128～4096kbps |
| Image adjustment |
Brightness, contrast, OSD display |
| Audio |
Input |
Built-in -38dB microphone |
| Output |
Built-in 8Ω2W speaker |
| Sampling frequency/bit width |
8KHz/16bit |
| Compression standard/Bit Rate |
G711A |
| AI |
Humanoid detection |
Humanoid detection, filtering invalid video events |
| Human tracking |
Automatically zooms in and follows the person after it is detected |
| Area detection |
Customize the zone that is concerned by users |
| Smart notification sound |
Different devices push different sounds, so that you can know exactly which device is triggered |
| Intelligent alarm sound |
Set different equipment alarm sounds according to different scenarios |
| Network |

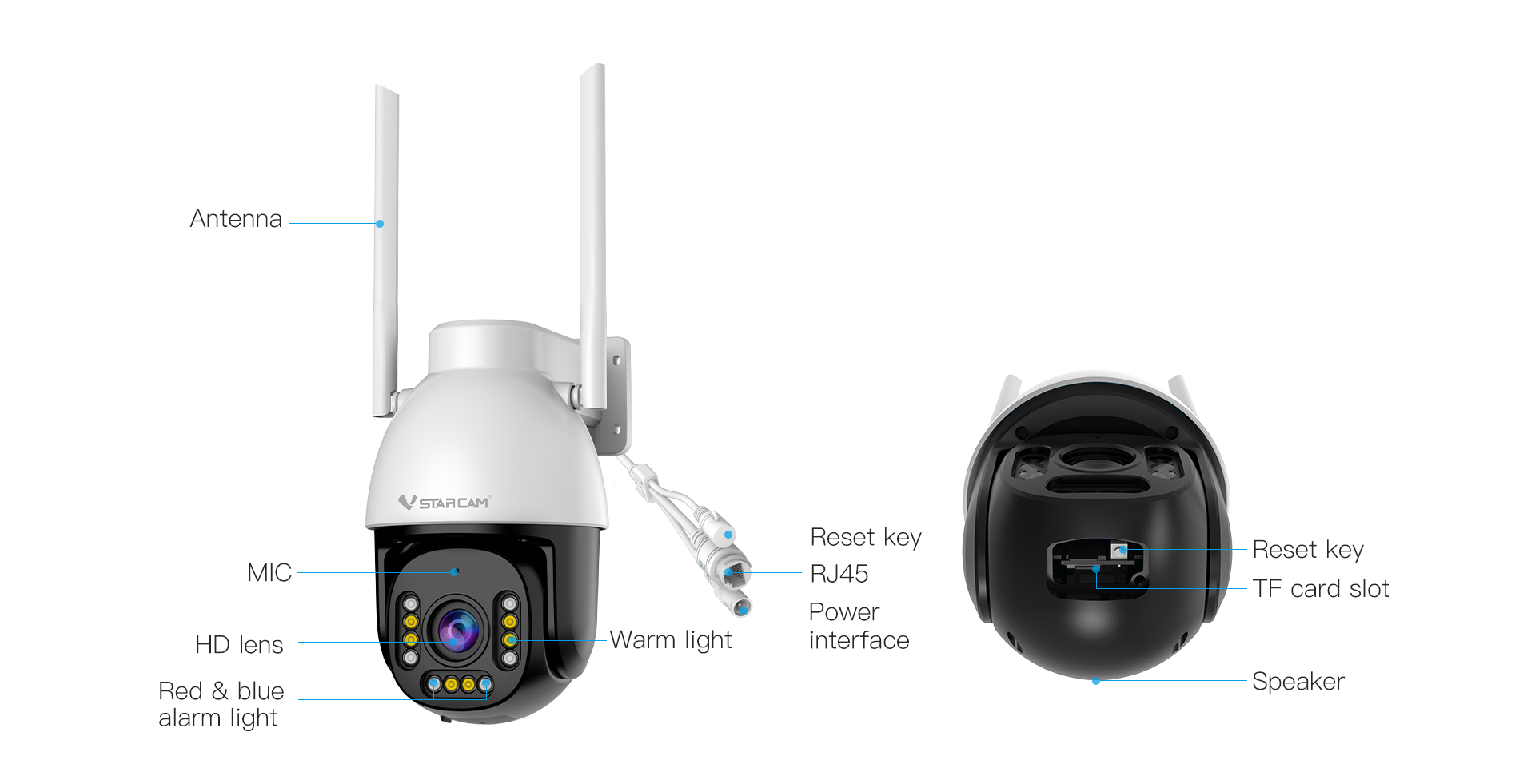

Network interface |
10Mbps/100Mbps adaptive/RJ45 interface |
| Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. |
| Wireless network |
IEEE802.11b/g/n |
| Wireless frequency |
2.4/5.2, 5.3,5.6 GHz |
| Wireless security encryption |
64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |

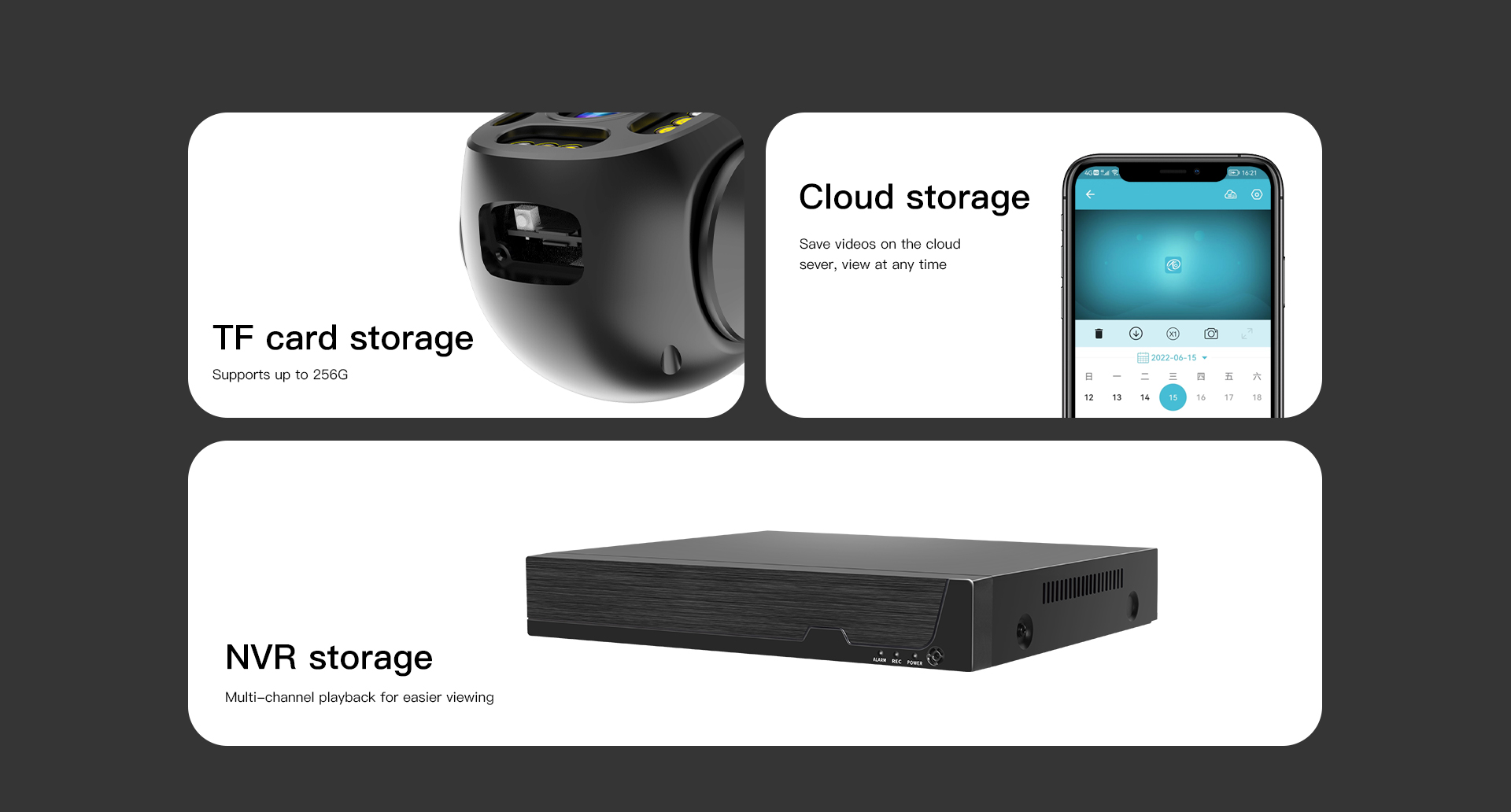

| Storage |
External TF card |
Support TF card (up to 256GB) |
| Cloud storage |
Support cloud storage, can purchase according to your need |
| Alarm |
Alarm detection |

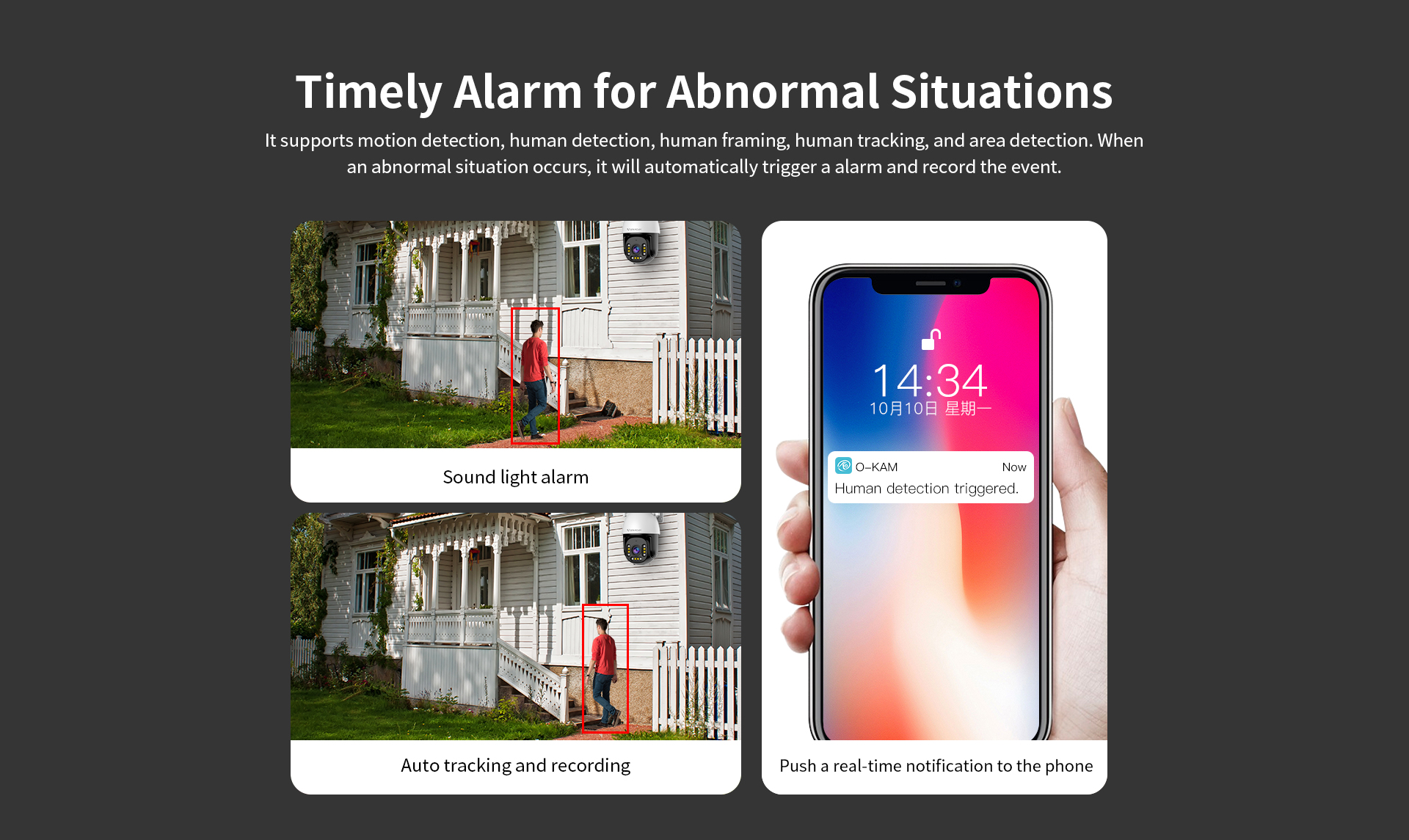

Motion detection, human detection, human framing, human tracking, siren sound, and area detection |
| Physical Indicators |
Rated voltage |
DC12V±5% |
| Power consumption |
Power: 7.4W (with infrared light on), Max power: 12.8W |
| Operating condition |
Temperature: -10～50℃; Humidity: ＜90% |
| Weight |
(Note: in kind prevail） |

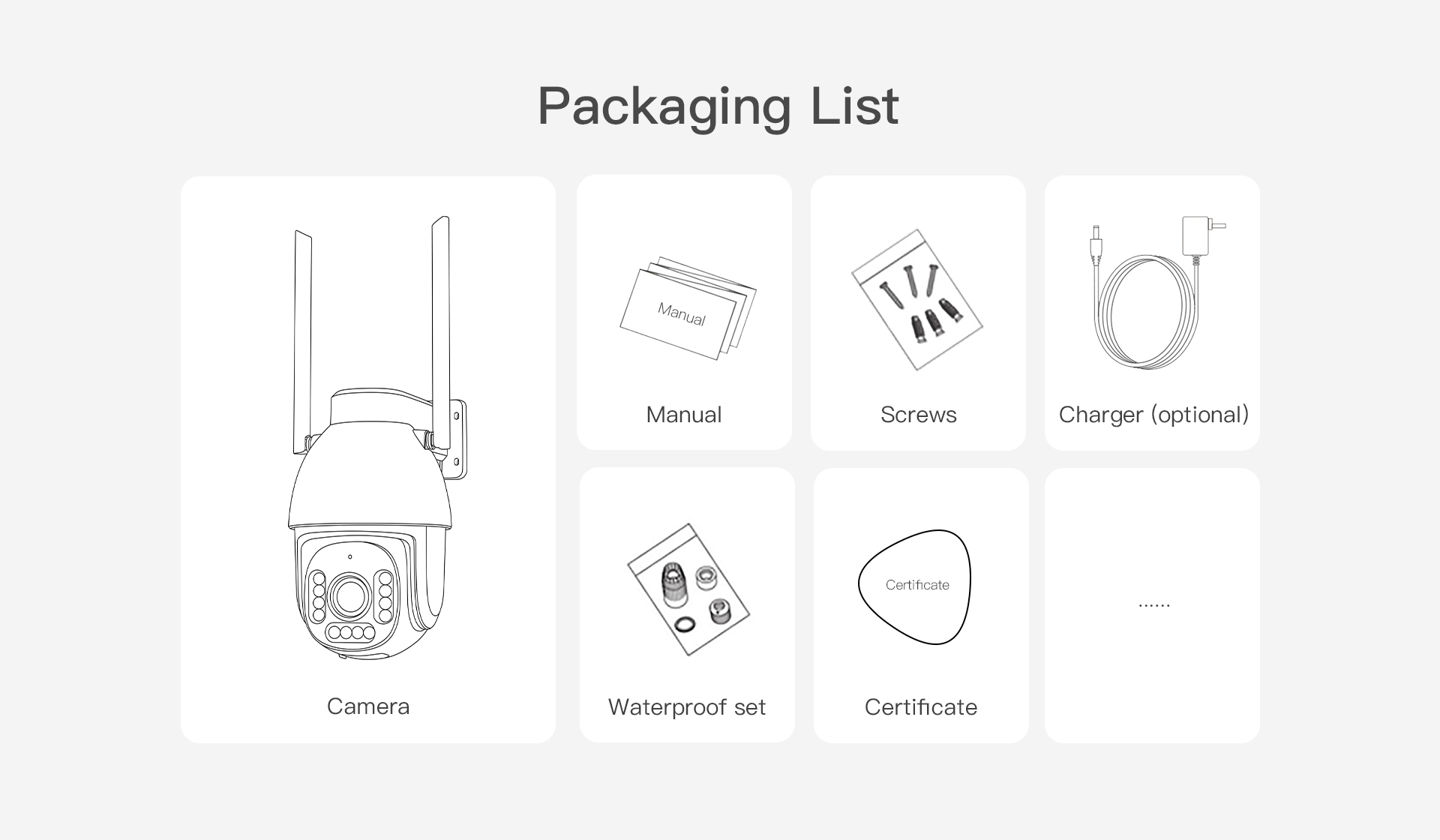

| Packing list |
Camera, screw pack, warning sticker, screwdriver, user manual |
