| Sorts |
Type |
Parameters |
| System |
Operating system |
Embedded Linux |
| Online visitor |
Supports 4 visitors at the same time |
| Collection |
CPU/Image sensor |
1/3 inch CMOS sensor |
| Minimum illumination |
0.5 Lux(Color mode), 0.1 Lux(B&W mode) |
| Lens/Viewing angle |
4mm@F2.1/90.9°Diagonal |
| Night Vision |

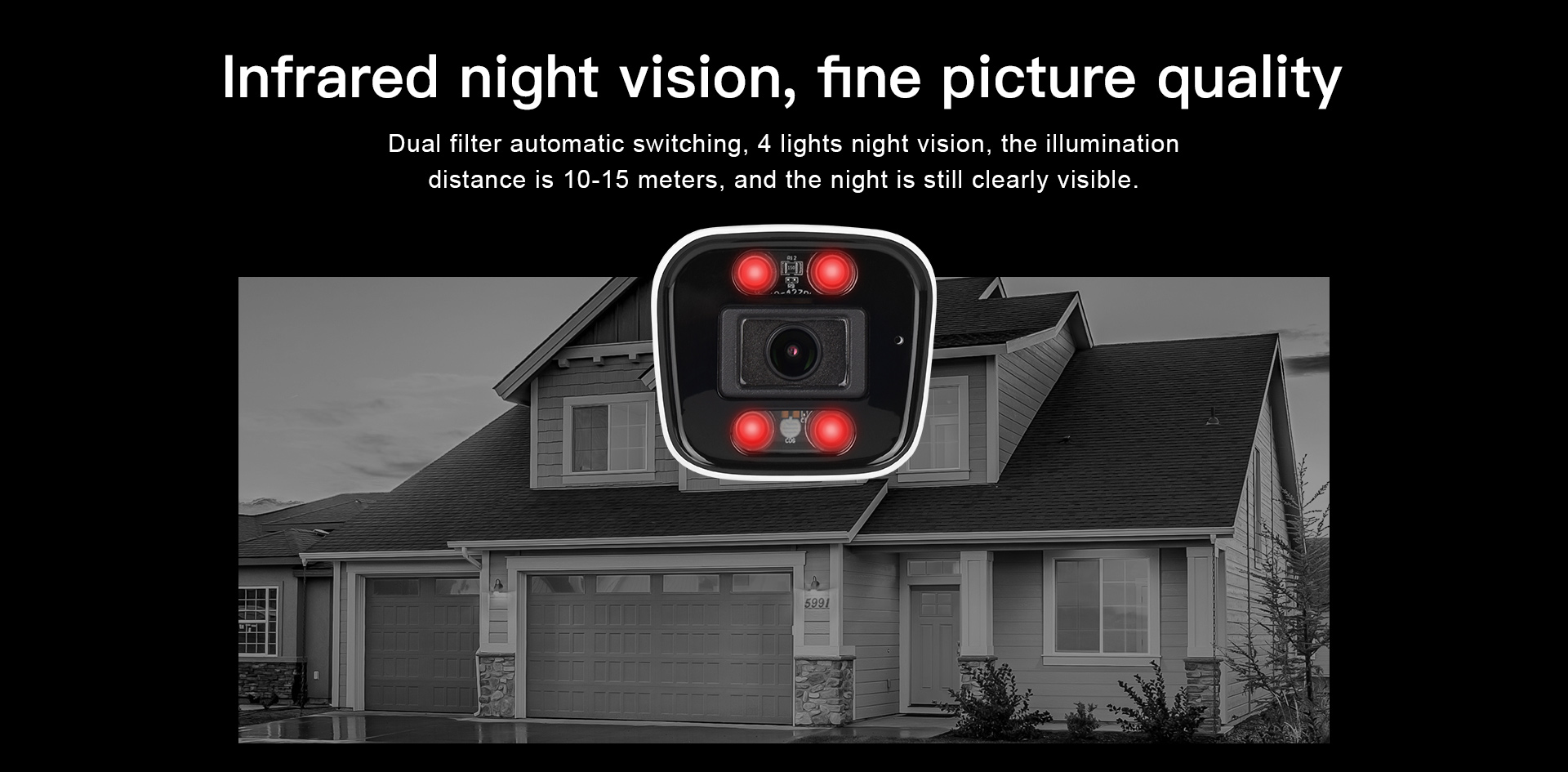

IR-CUT with auto-switching, 4pcs 850nm IR LED lights, Irradiation distance 5~10 m |
| Video |
Compression standard |
H.264 main profile/Motion-JPEG/JPEG |
| Data rate |
Main stream: 1296p(2304×1296)@25fps |
| Substream：360p(640×360)@25fps |
| Bit rate/maximum frame rate |
128～4096kbps/25fps |
| Image adjustment |
Brightness, contrast, saturation, chroma are adjustable |
| Audio |
Input |
Built-in－38dB microphone |
| Output |
Built-in 8Ω1.5W speaker |
| Sampling frequency/bit width |
8KHz/16bit |
| Compression standard/Bit Rate |
G.711/32kbps |
| Network |
Network interface |
10Mbps/100Mbps self-adaptive/RJ45 Interface |
| Network protocol |
TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc. |
| Wireless network |
IEEE802.11b/g/n |
| Wireless frequency |
2.4GHz |
| Wireless security encryption |
64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |
| Storage |
Storage functions |
Support T-Flashcard(max256GB); Cloud storage; |
| Alarm |
Alarm detection |

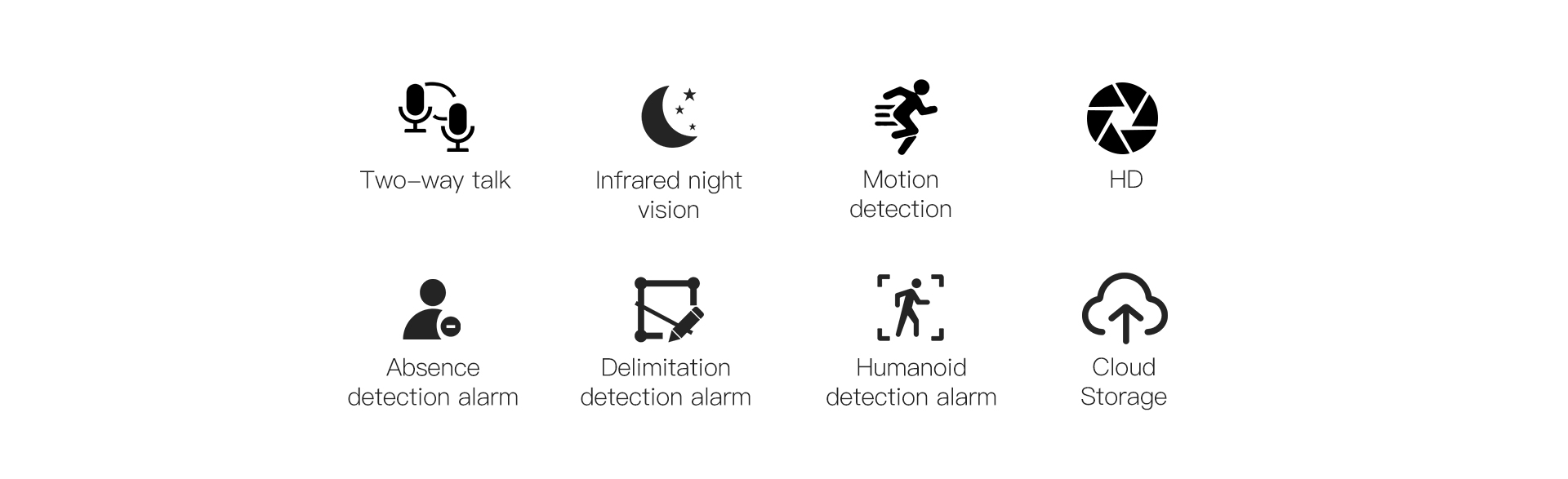

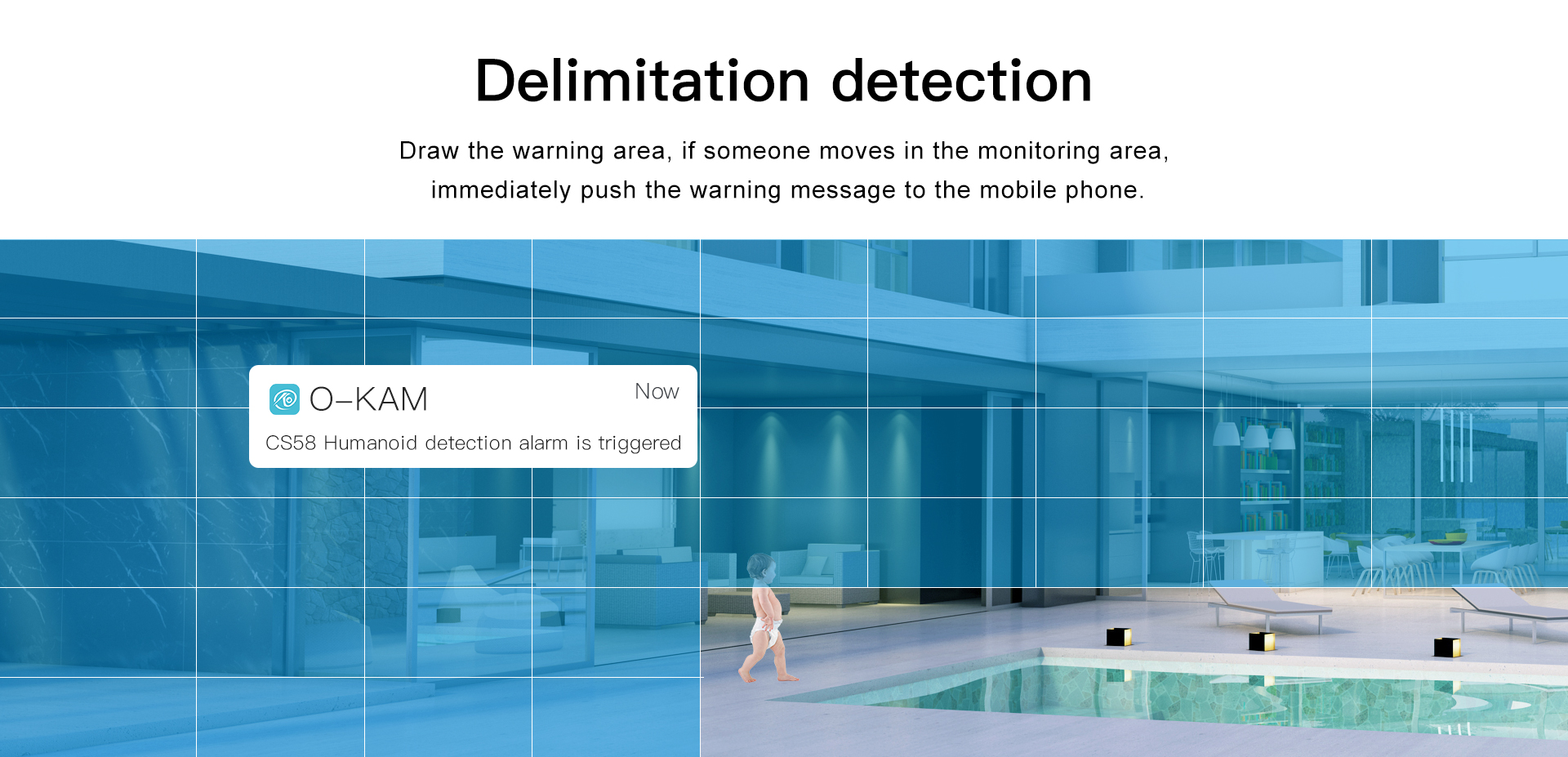

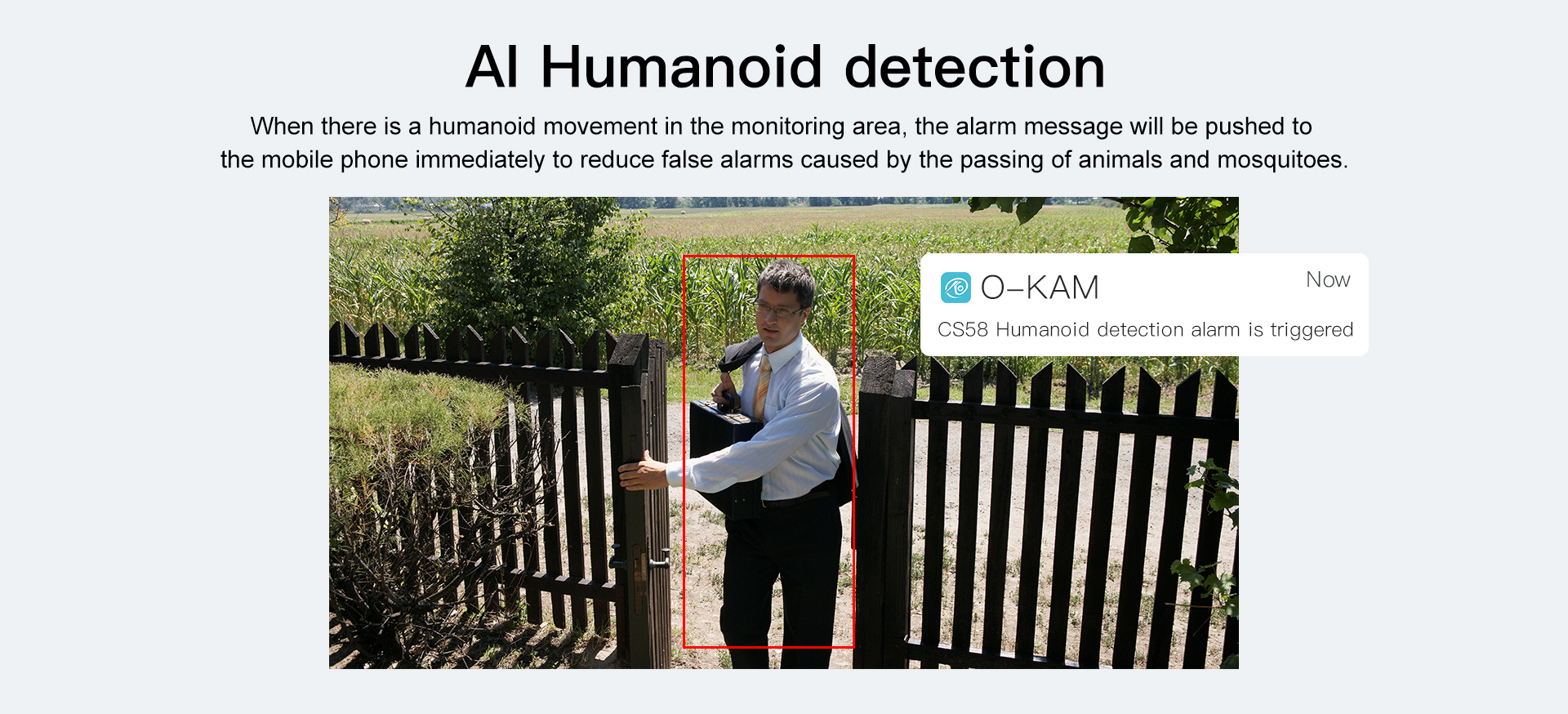

Supports Motion detection; Humanoid detection; Humanoid tracking; Smoke Alarm; Absences alarm; Delimitation detection |
| Physical Indicators |
Rated voltage |
DC12V±5% |
| Power consumption |
Rated power: 3.8 W(with IR LED lights ON)/ Max Power:5W |
| Operating condition |
Temperature: -10～50℃; Humidity: ＜90% |
| Weight |
N.W.: 335g（Note: in kind prevail） |
| Packaging Size |
228x149x93mm (LxWxH) |
